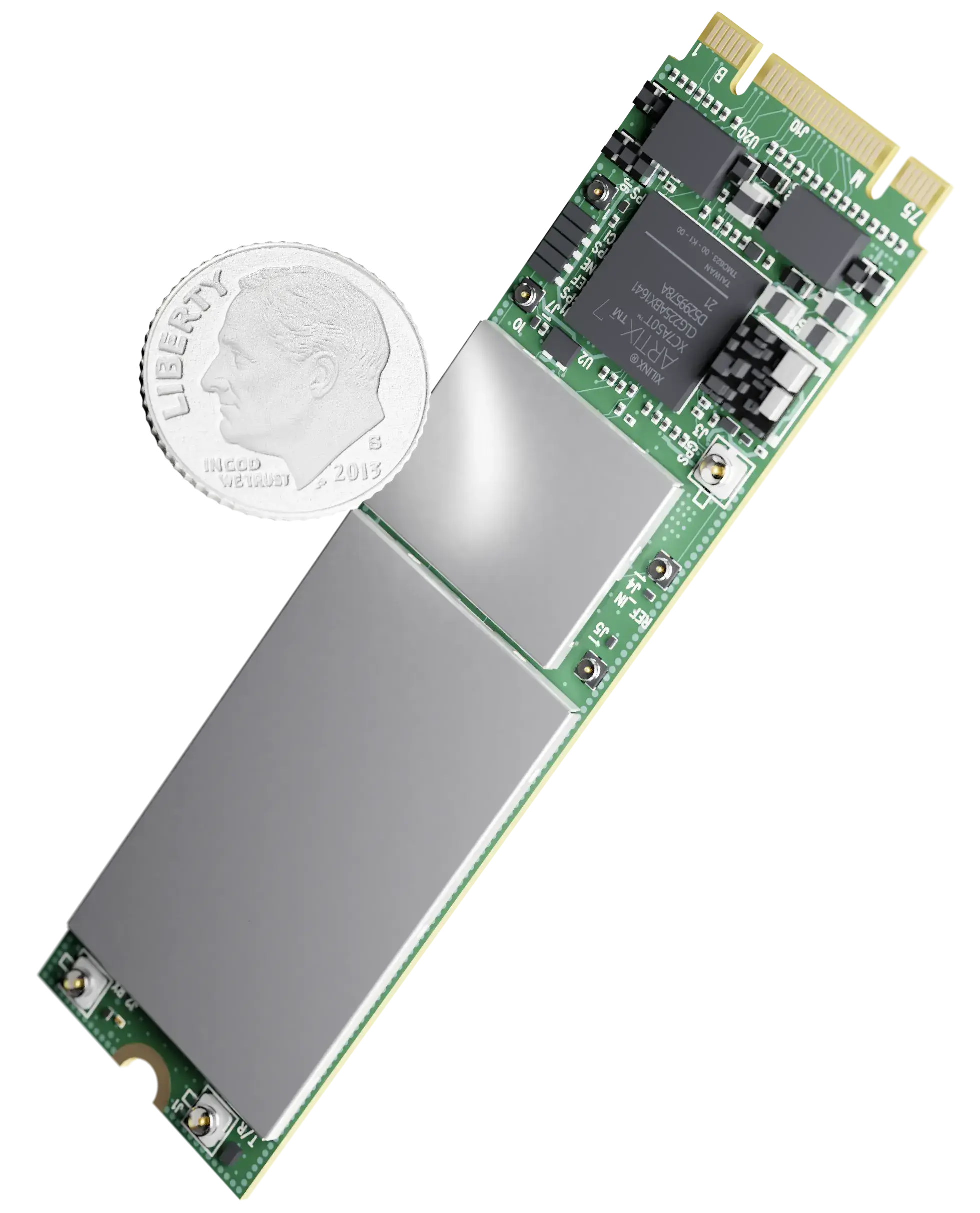

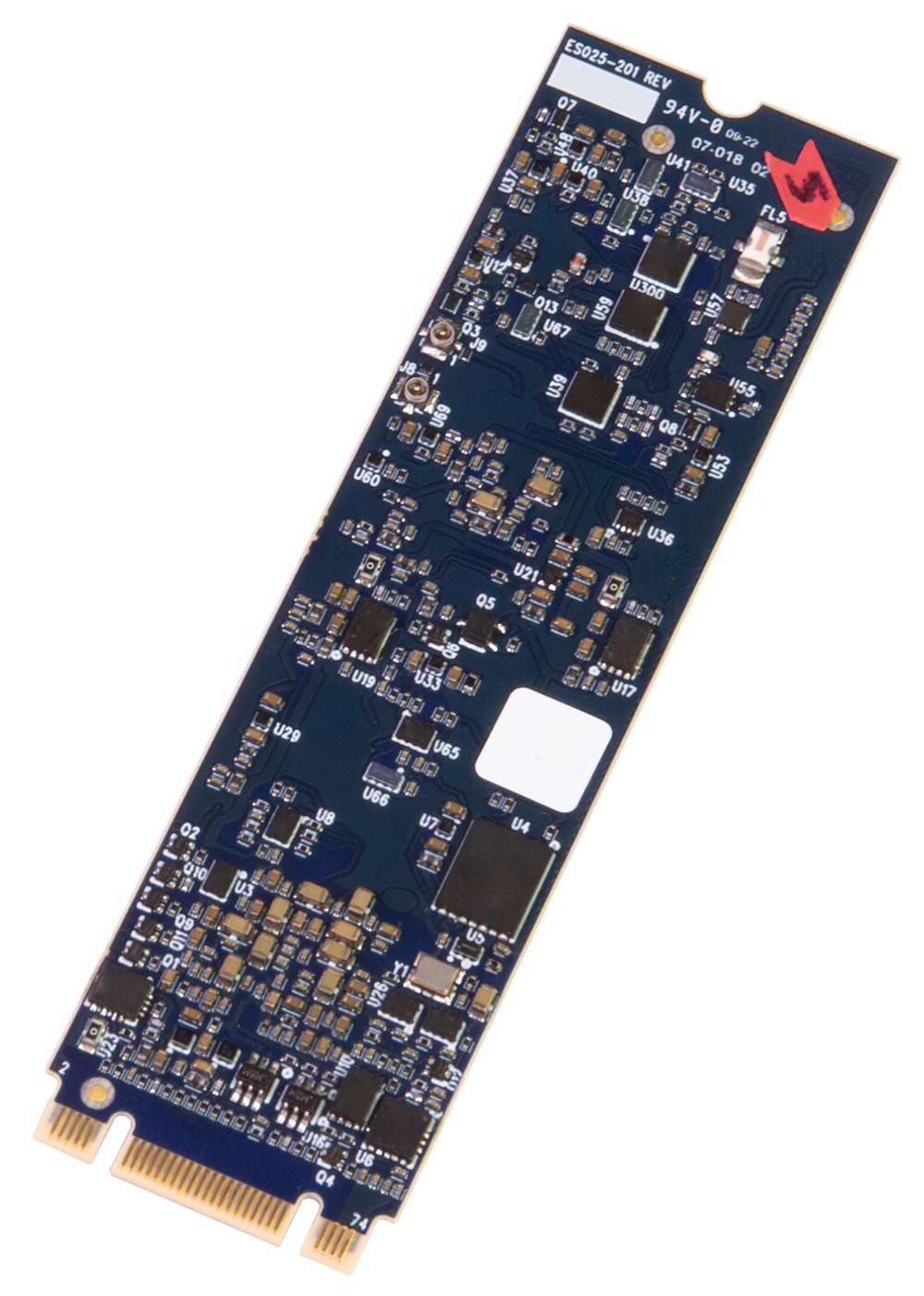

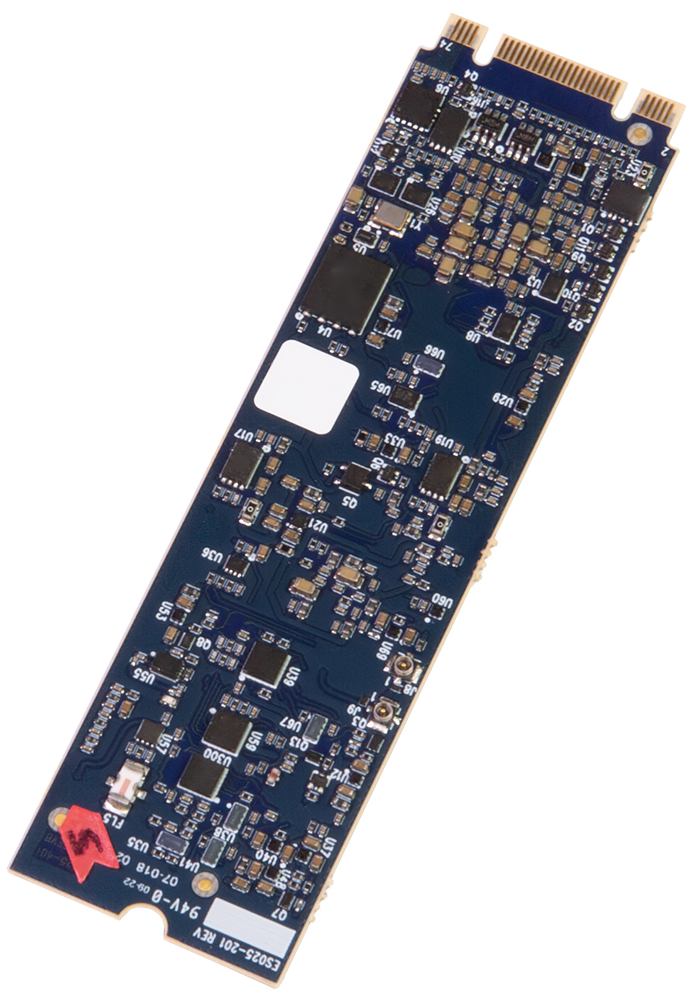

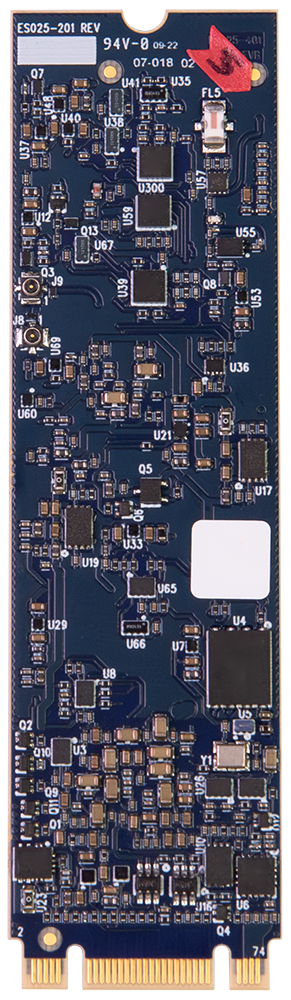

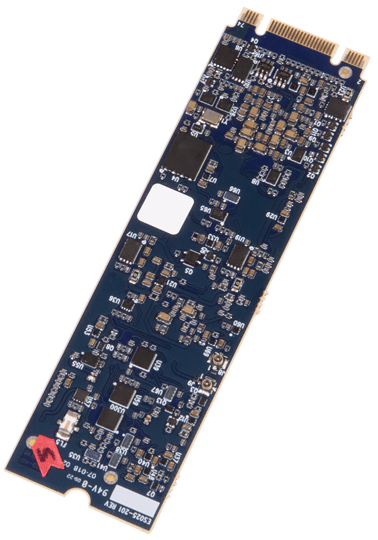

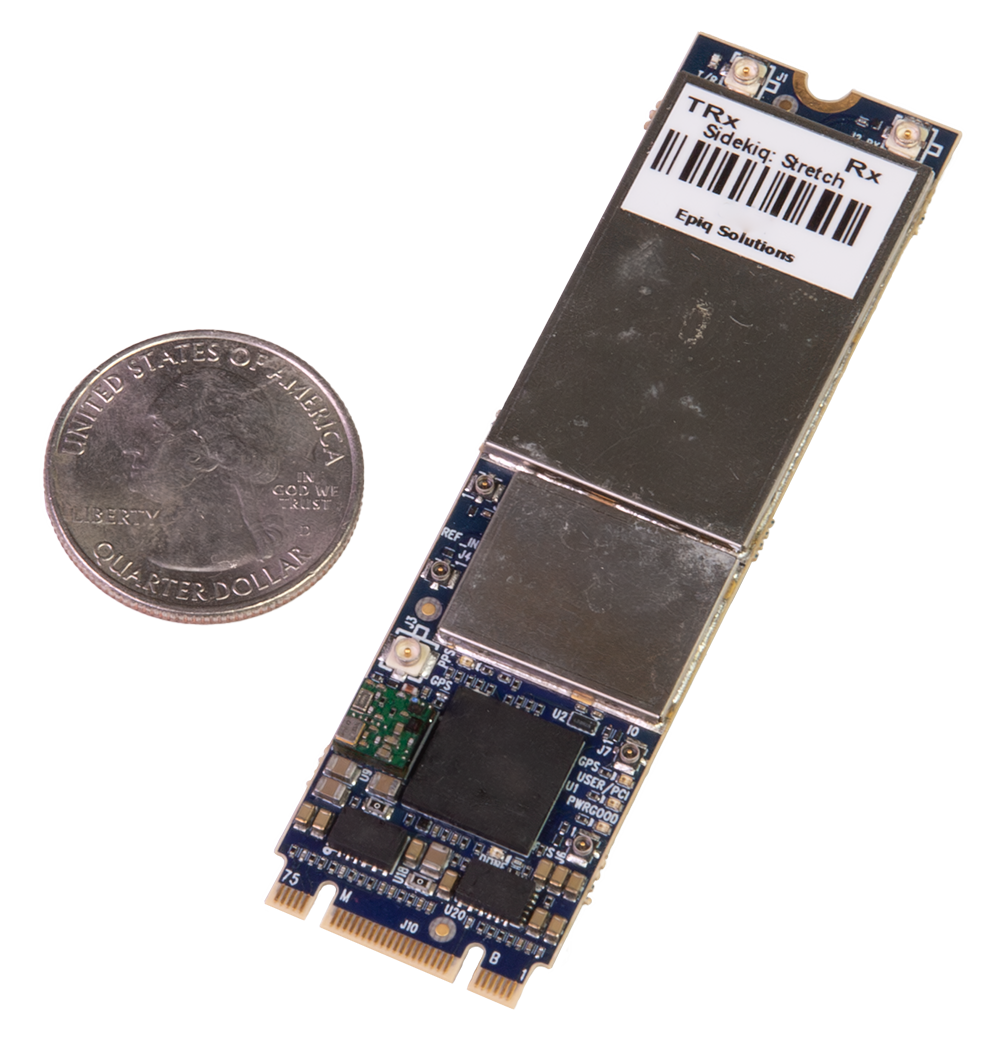

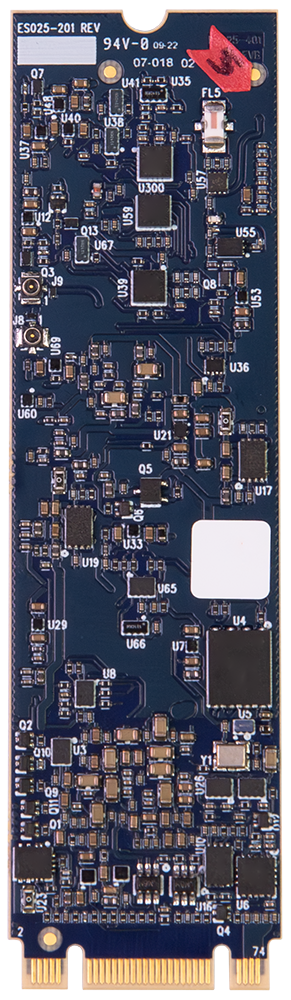

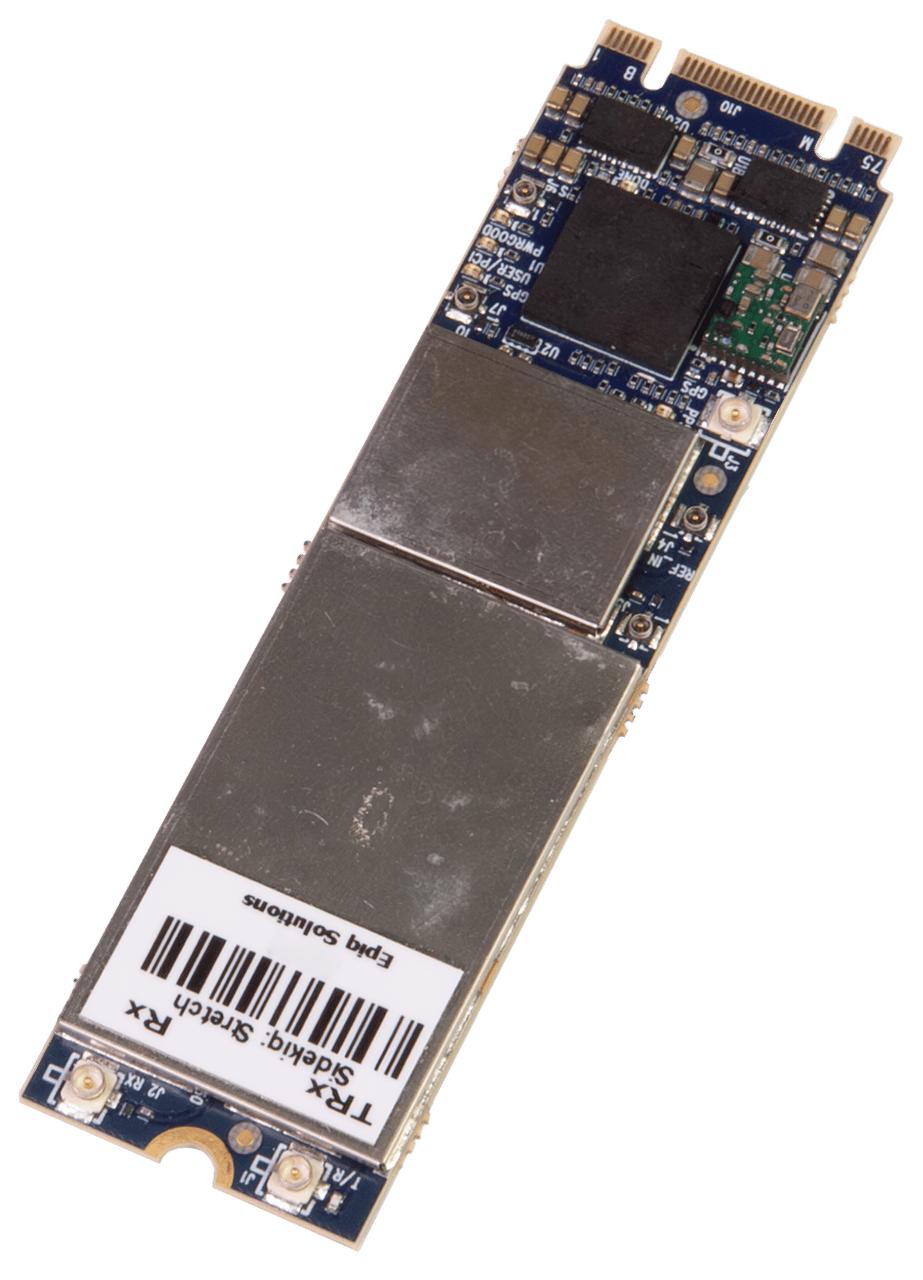

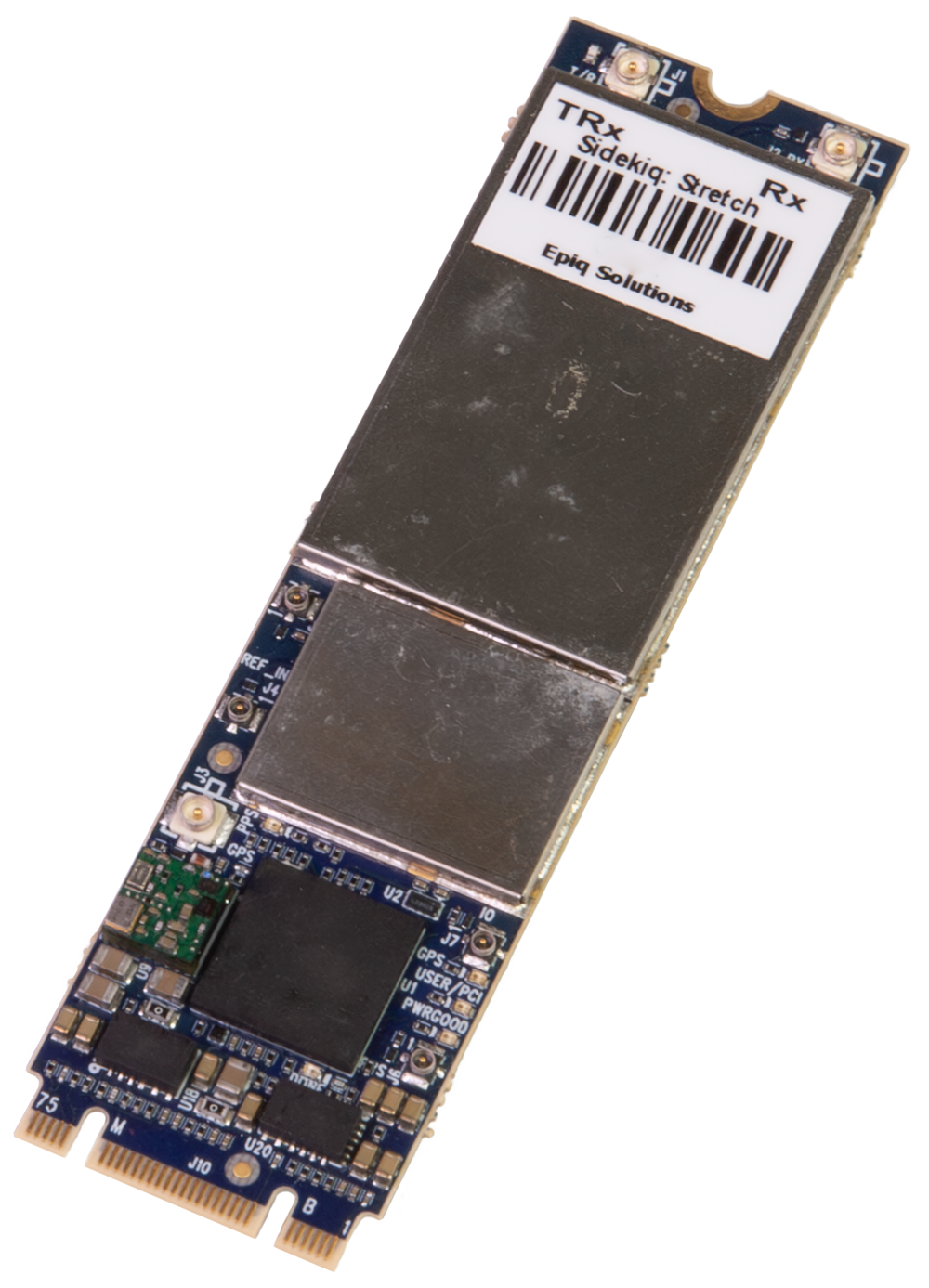

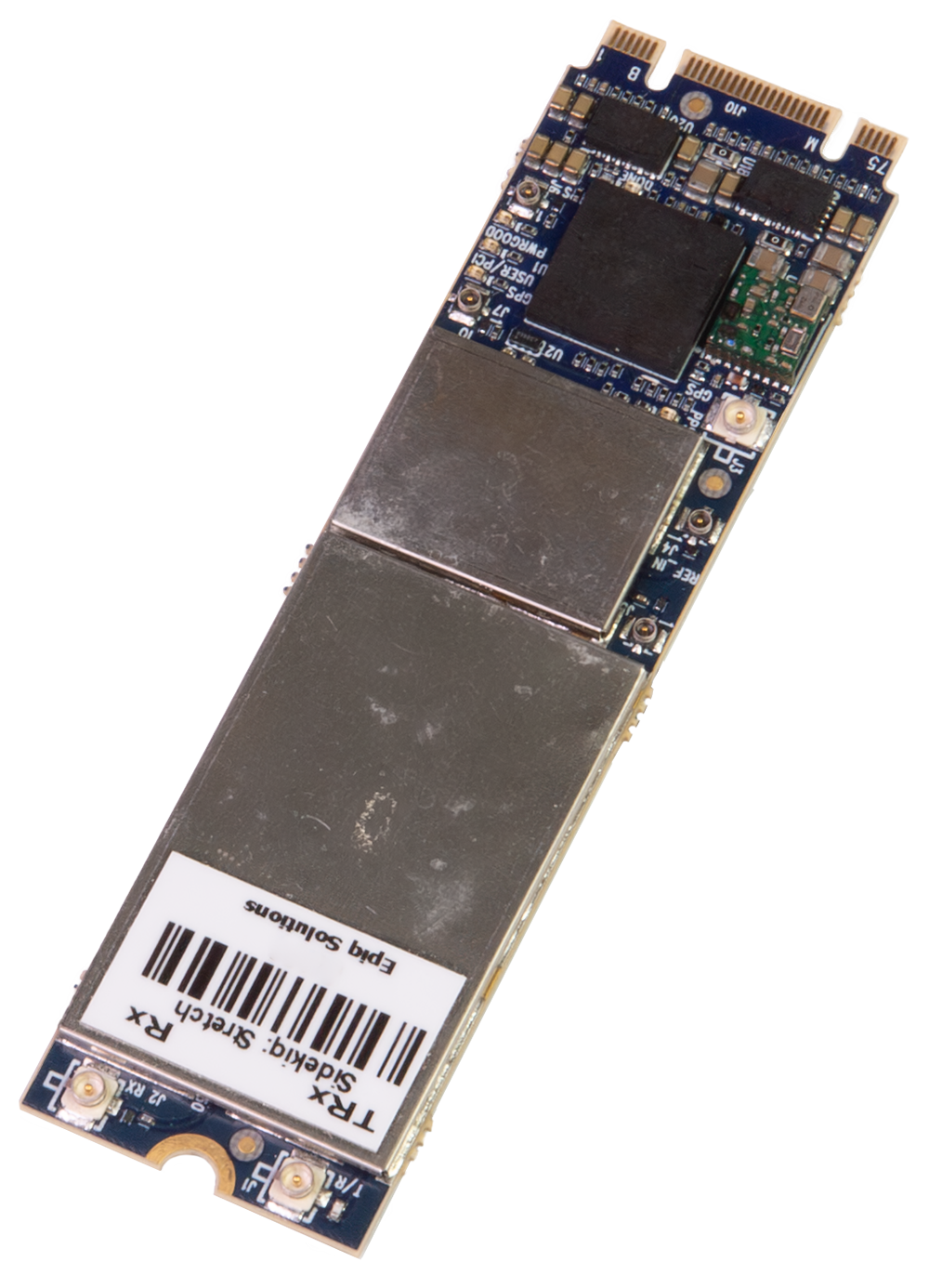

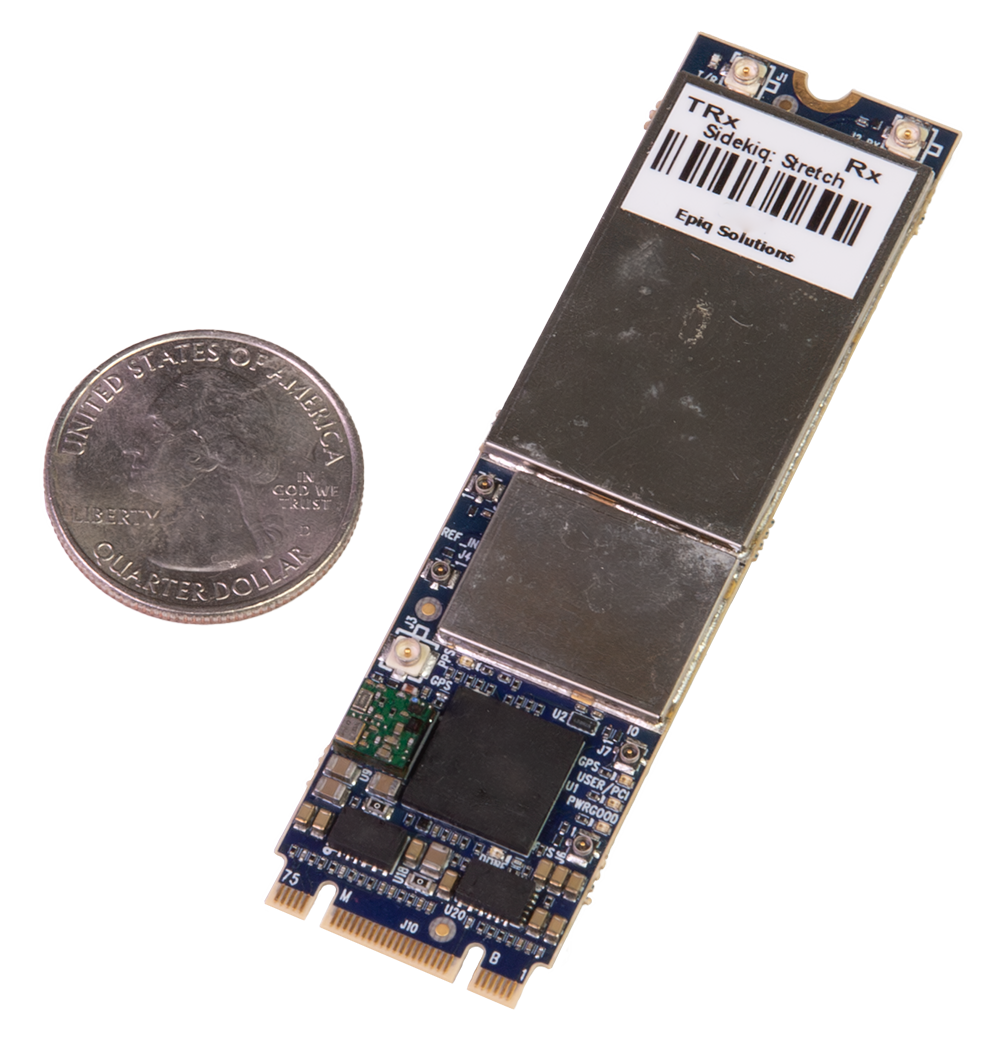

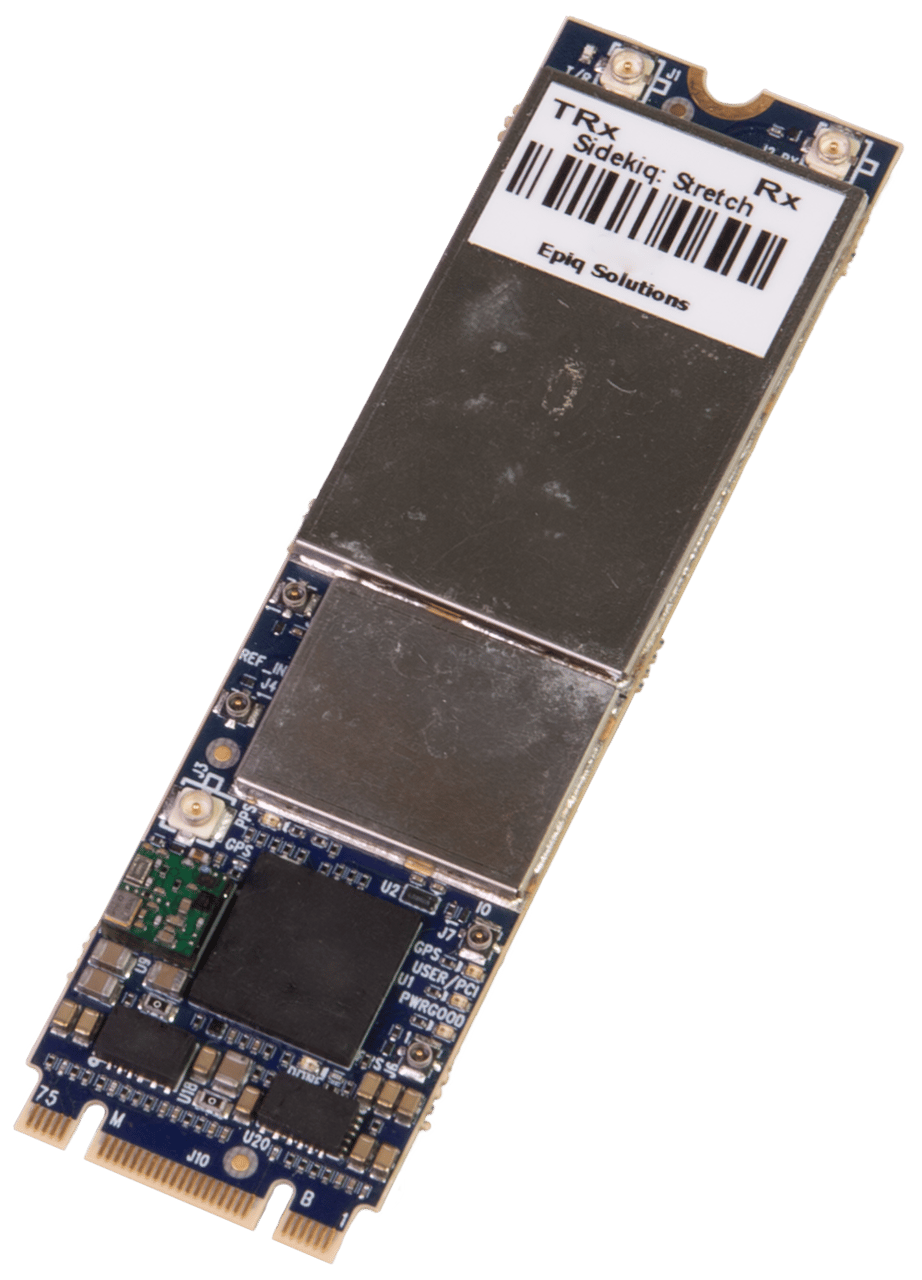

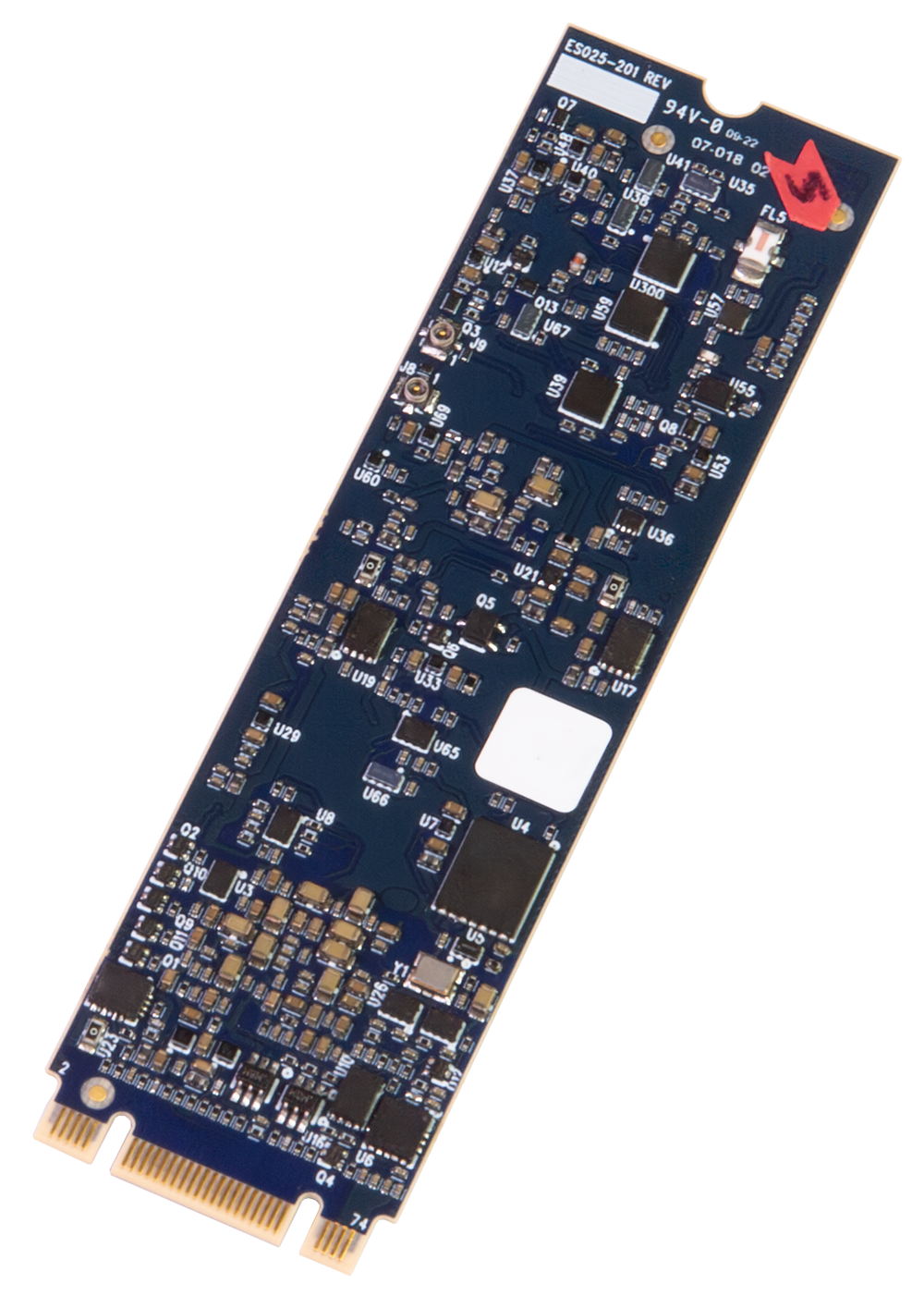

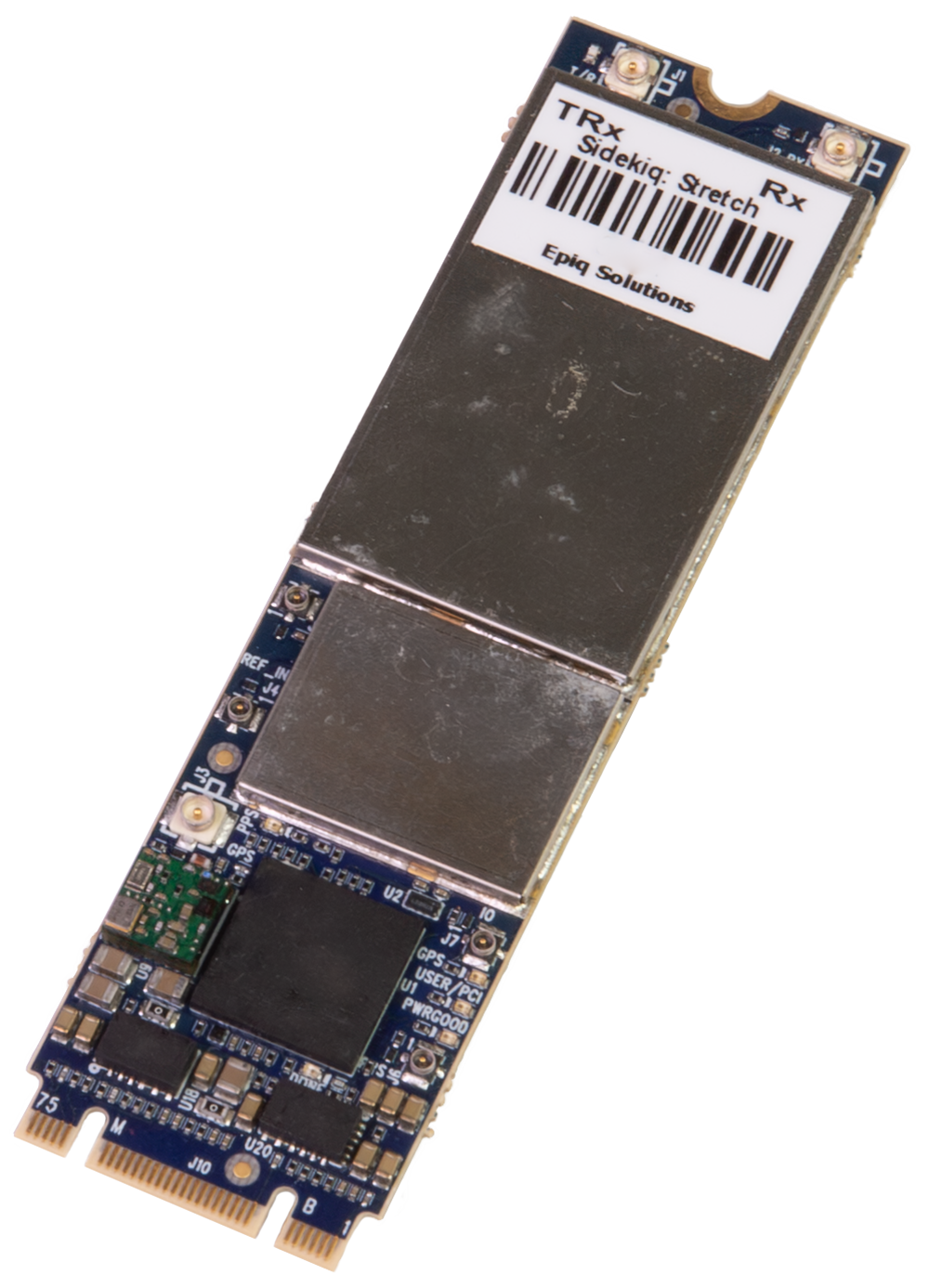

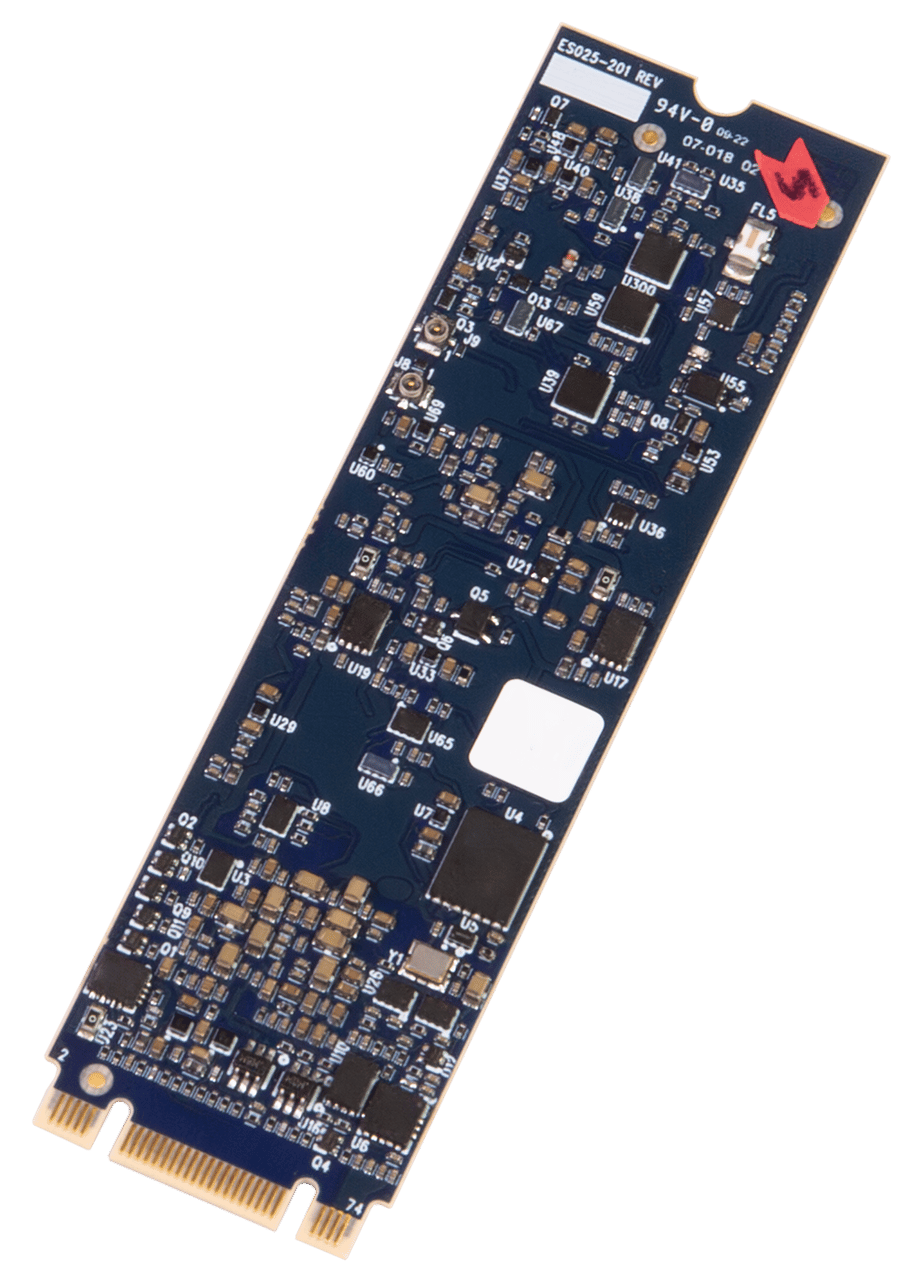

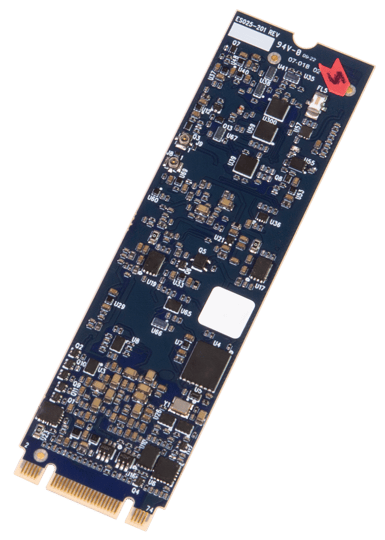

SIDEKIQ™ STRETCH

Sidekiq™ Stretch combines the Sidekiq™ family's state-of-the-art wideband RF processing capabilities with an integrated GPS clock and flexible Rx pre-select filtering, all in a common form factor with wide compatibility out of the box.
background-ring-image mobile backgroung image

features

RF Tuning Range

70 MHz to 6 GHz

Integrated FPGA

Xilinx Artix 7 XC7A50T FPGA with
x1 Gen2 PCIe interface

RF Transceivers

1 Rx + 1 Tx separate LO

RF Bandwidth

Up to 50 MHz per channel

Form Factor

M.2 2280 Key B+M
(22 mm x 80 mm x 4.5 mm)

Power Consumption

2.5W (typical usage)

Benefits

WIDE COMPATIBILITY

Because it uses the M.2 2280 form factor, commonly found on laptops and tablets, the Sidekiq™ STRETCH is compatible with many computer systems.

INTEGRATED GPS

The Sidekiq™ Stretch includes an integrated GPS receiver and GPS-disciplined oscillator, giving you superior accuracy in long-term positioning.

benefits

Powerful and
Versatile

The Sidekiq™ Stretch's high performance and small size make it a versatile tool for any RF engineer. Whatever the situation, Stretch is up to the challenge.

key spec

Sidekiq™ Stretch specs at a glance

Tuning Range

70 MHz to 6 GHz

Bandwidth

Up to 50 MHz per channel

Power Consumption

2.5W (typical usage)

Integrated FPGA

Xilinx Artix 7 XC7A50T FPGA with x1 Gen2 PCIe interface

Form Factor

M.2 2280 Key B+M (22 mm x 80 mm x 4.5 mm)

I/O

PCIe Gen2 x1 (5 Gbps) + GPIO

Receivers

1

Transmitters

1

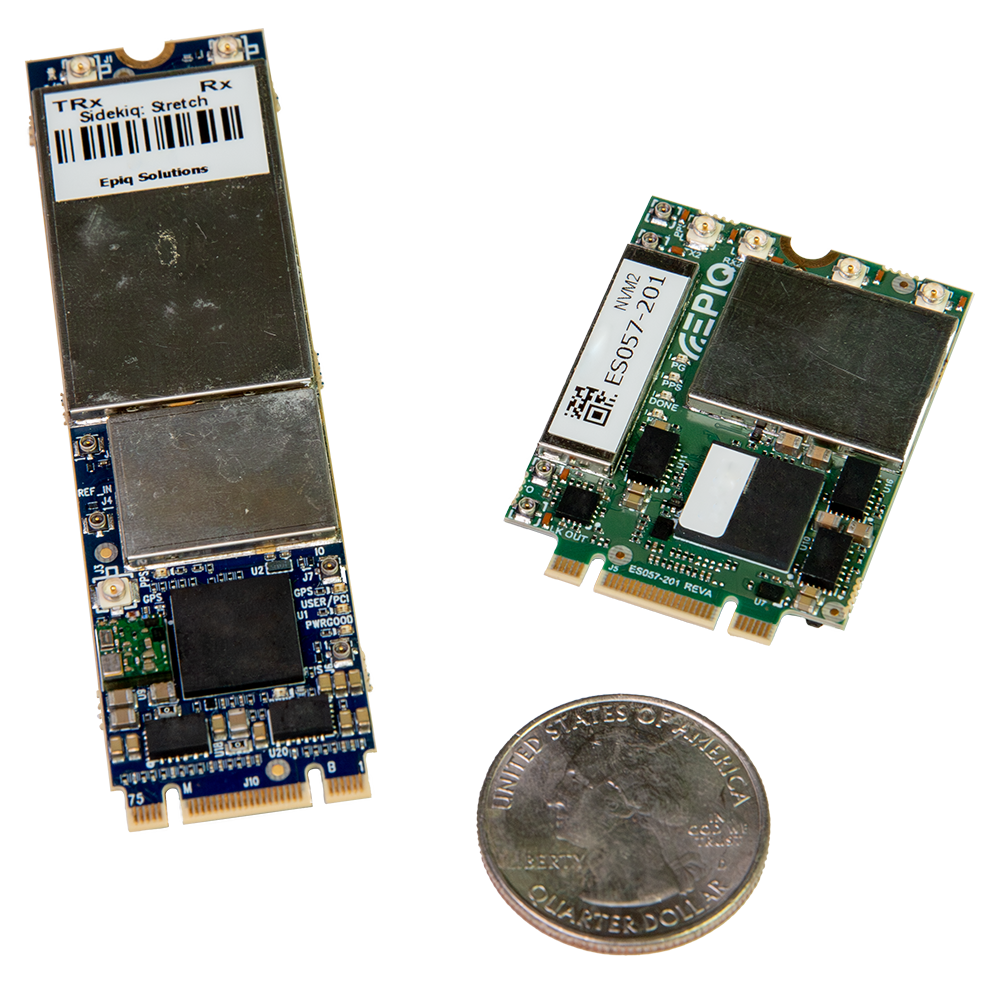

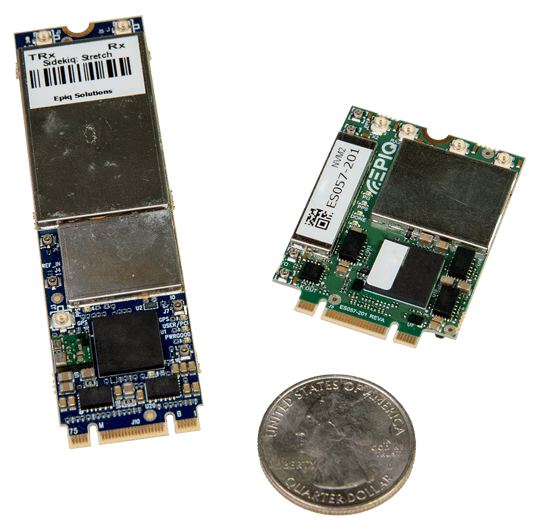

compared spec

Sidekiq™ STRETCH

Sidekiq™ NV100

RF Coverage
Bandwidth
Receivers
Transmitters
Integrated FPGA
Form Factor
I/O
Power Consumption
45 MHz to 6 GHz
Up to 50 MHz per channel
1
1
AMD Artix 7 XC7A50T
M.2 2280 Key B+M
(22 mm x 80 mm x 4.5 mm)
PCIe Gen2 x1 + GPIO + GPSDO
2.5W (typical usage)
10 MHz to 6 GHz
Up to 50 MHz per channel
Up to 2
Up to 2
AMD Artix 7 XC7A50T FPGA
M.2 2280 Key B + M
(22 mm x 80 mm x 4.5 mm)
PCIe Gen2 x2 + GPIO + GPSDO
4-6 W (typical usage)

compared specs

Find your Perfect Sidekiq™

slider product

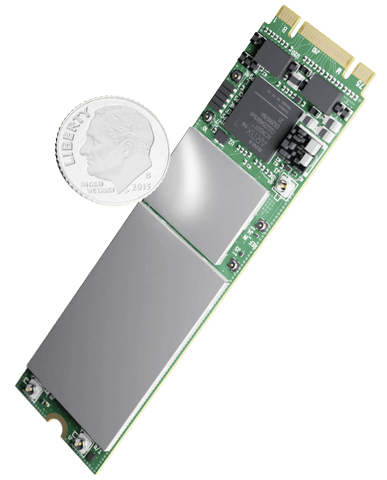

Sidekiq™ STRETCH

TUNING RANGE

70 MHz to 6 GH

Channel Bandwidth

Up to 50 MHz per channel

Power Consumption

2.5W (typical usage)

Integrated FPGA

Xilinx Artix 7 XC7A50T FPGA with x1 Gen2 PCIe interface

Form Factor

M.2 2280 Key B+M (22 mm x 80 mm x 4.5 mm)

I/O

PCIe Gen2 x1 (5 Gbps) + GPIO

Receivers

1

Transmitters

1

slider product

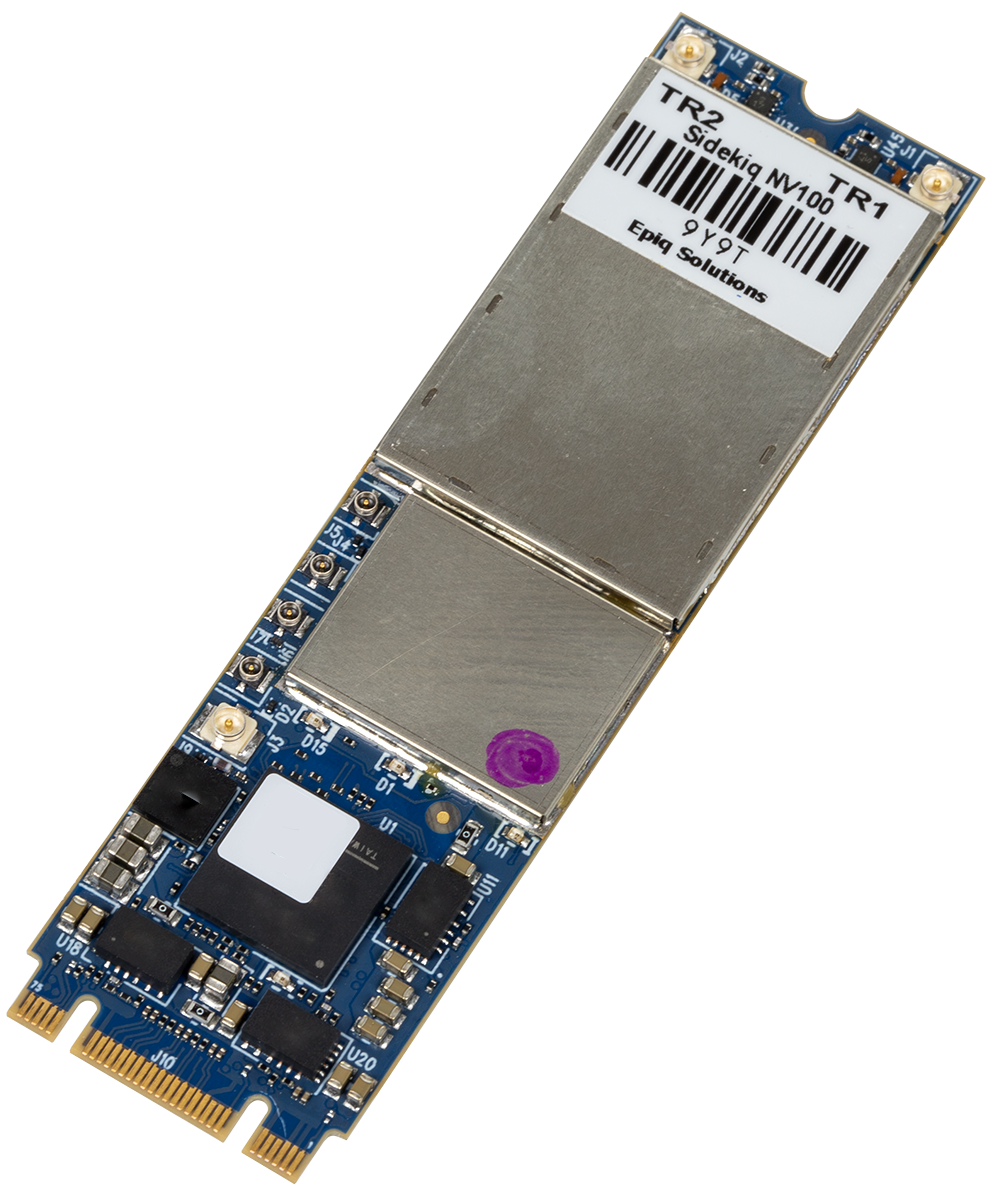

Sidekiq™ NV100

TUNING RANGE

30 MHz to 6 GHz (RF access down to 10 MHz)

Channel Bandwidth

Up to 50 MHz per channel

Power Consumption

4-6 W (typical usage)

Integrated FPGA

Xilinx Artix 7 XC7A50T FPGA with x2 Gen2 PCIe interface

Form Factor

M.2 2280 Key B + M (22 mm x 80 mm x 4.5 mm)

I/O

PCIe Gen2 x1 (5 Gbps) + GPIO

Receivers

Up to 2

Transmitters

Upto to 2

APPLICATIONS

Perfect for a Range
of Applications

Thunderbolt™ 3 Compatible Peripheral
Get the Sidekiq™ Stretch in a Thunderbolt™ compatible carrier, with SMA ports for RF and a Thunderbolt™ 3 compatible USB-C connector.
Compact RF Platform
Need a complete, high-performance SDR solution in a small form factor? We offer Sidekiq™ Stretch pre-integrated into an Intel® NUC computer.
CASE STUDY
Enabling Wireless Security with Flying Fox® Enterprise

Using Sidekiq™ modules to create Flying Fox® Enterprise, a robust RF-sensing solution, we unlocked a new way to safeguard facilities from unauthorized wireless devices, allow for swift removal of threats, and boost first-line defense.

Building the Game-Changer in Rescue Operations

When CENTUM needed an SDR solution for their Lifeseeker search and rescue system that was compact yet powerful, we jumped at the chance. In the span of just one year, our Sidekiq™ M.2 card became a silent hero: helping CENTUM save over 100 lives every yearly.

RELATED PRODUCTS

Looking for More?

Customize Your Sidekiq™

We design every product to be flexible and adaptable. Ready to explore more of our technology?

faq

Frequently Asked Questions

What is a Software-Defined Radio (SDR)?

SDR is a radio communication system in which components traditionally implemented in hardware are instead implemented (via custom software) on a personal device or embedded computer system. SDR systems can be adapted to integrate with various communication applications. Once integrated, SDRs can be used to scan for radio frequencies, listen to FM radio, track aircraft with ADS-B, receive GPS signals, dabble in amateur radio, decode digital voice, and even bounce signals off the moon!

Learn More
How do Epiq's SDR products differ from others on the market?

Epiq's SDR solutions deliver unparalleled RF performance and flexibility in compact form factors, making them perfect for a range of applications: including mobile, portable, and space-constrained. With a wide tuning range from 70 MHz up to 6 GHz, our products can be used for things like spectrum analysis, RF recording, cellular network scanning, enforcing no-wireless policies, and more.

Learn More
Can I customize my SDR setup?

Yes, our SDRs, SDR platforms, and turnkey solutions are designed to be flexible and easily integrated. That means you can customize any of our products to fit your specific needs.

To get started, request one of our dev kits. We have two options: Evaluation (EVK) and Platform Development (PDK). You can request a dev kit by filling out the form below. Once you do, we'll get back to you with details and next steps.

If you need assistance, Epiq’s team is always here to offer comprehensive support: including detailed product documentation and an active community for peer discussions.

Learn More
What are the data transfer options for your SDRs?

Our SDRs support various data transfer interfaces, including USB 2.0, USB 3.0, and PCI Express (PCIe), depending on the product.

Learn More
Which programming languages or frameworks do your products support?

Our SDRs support popular frameworks such as GNU Radio, and others. For programming, we support languages such as C, C++, and Python.

Learn More
Do your products support phase-coherent MIMO operations?

Yes, our SDR products, such as the Sidekiq™ X4, support multi-channel phase-coherent MIMO operations, making them suitable for a variety of applications.

Learn More
Can your SDRs operate standalone or do they require a host device?

Many of our SDRs can operate both standalone and as part of a host device, giving you the flexibility to use them as needed.
