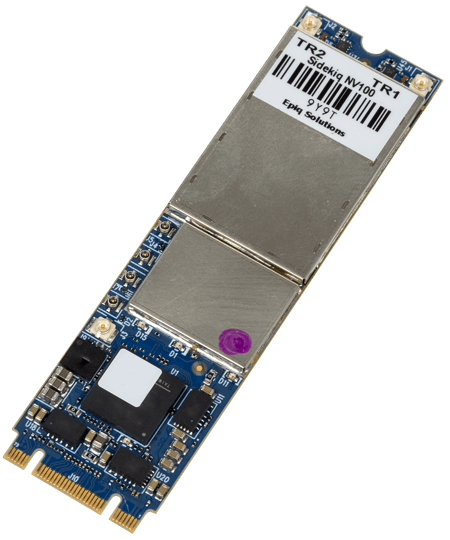

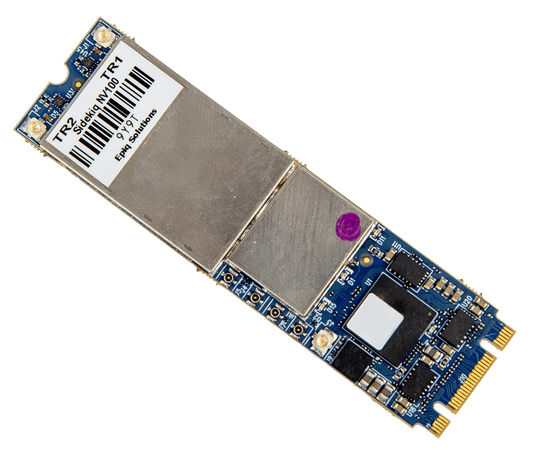

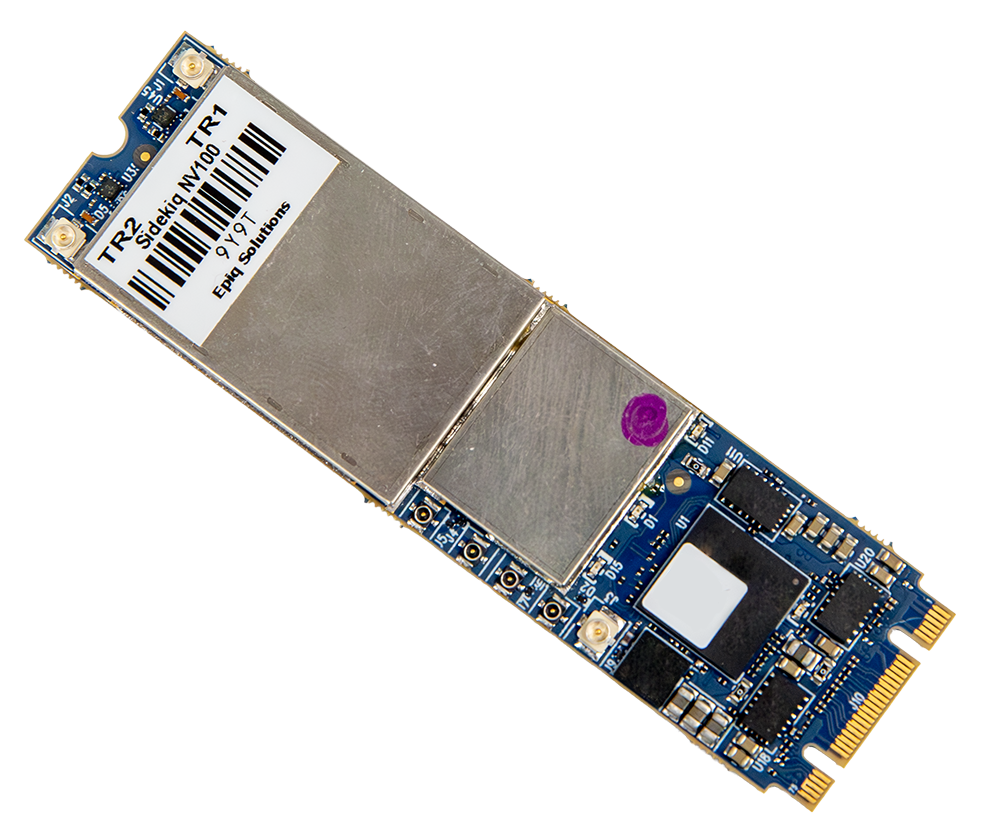

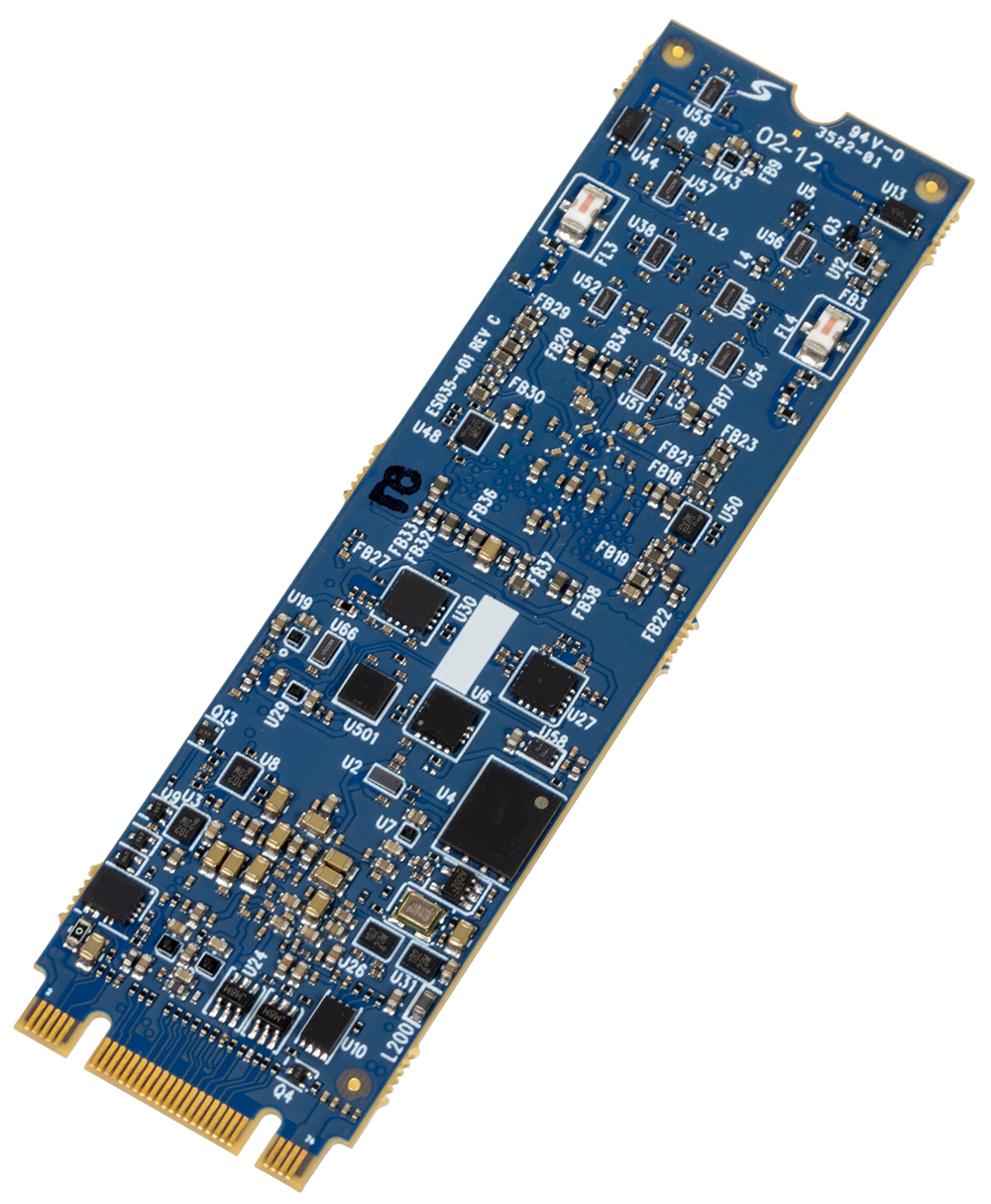

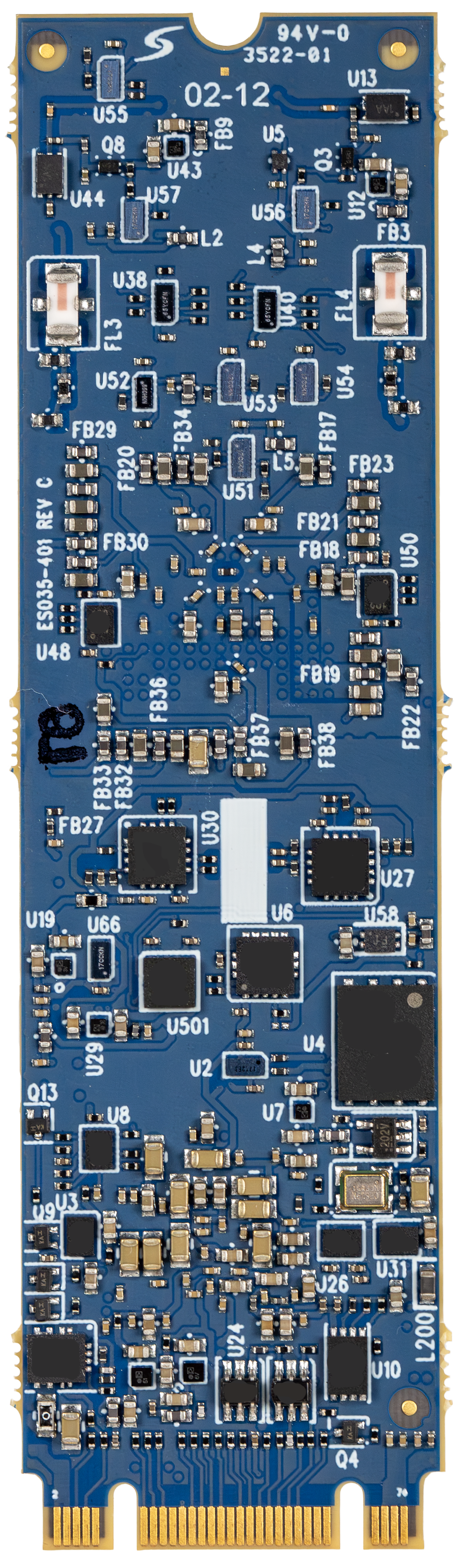

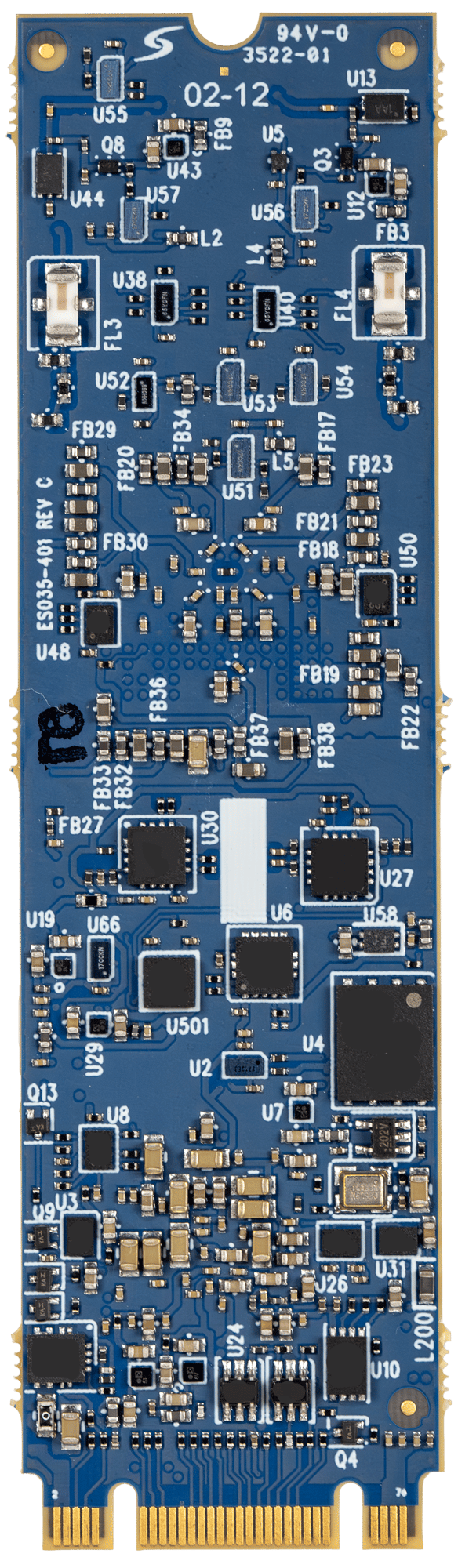

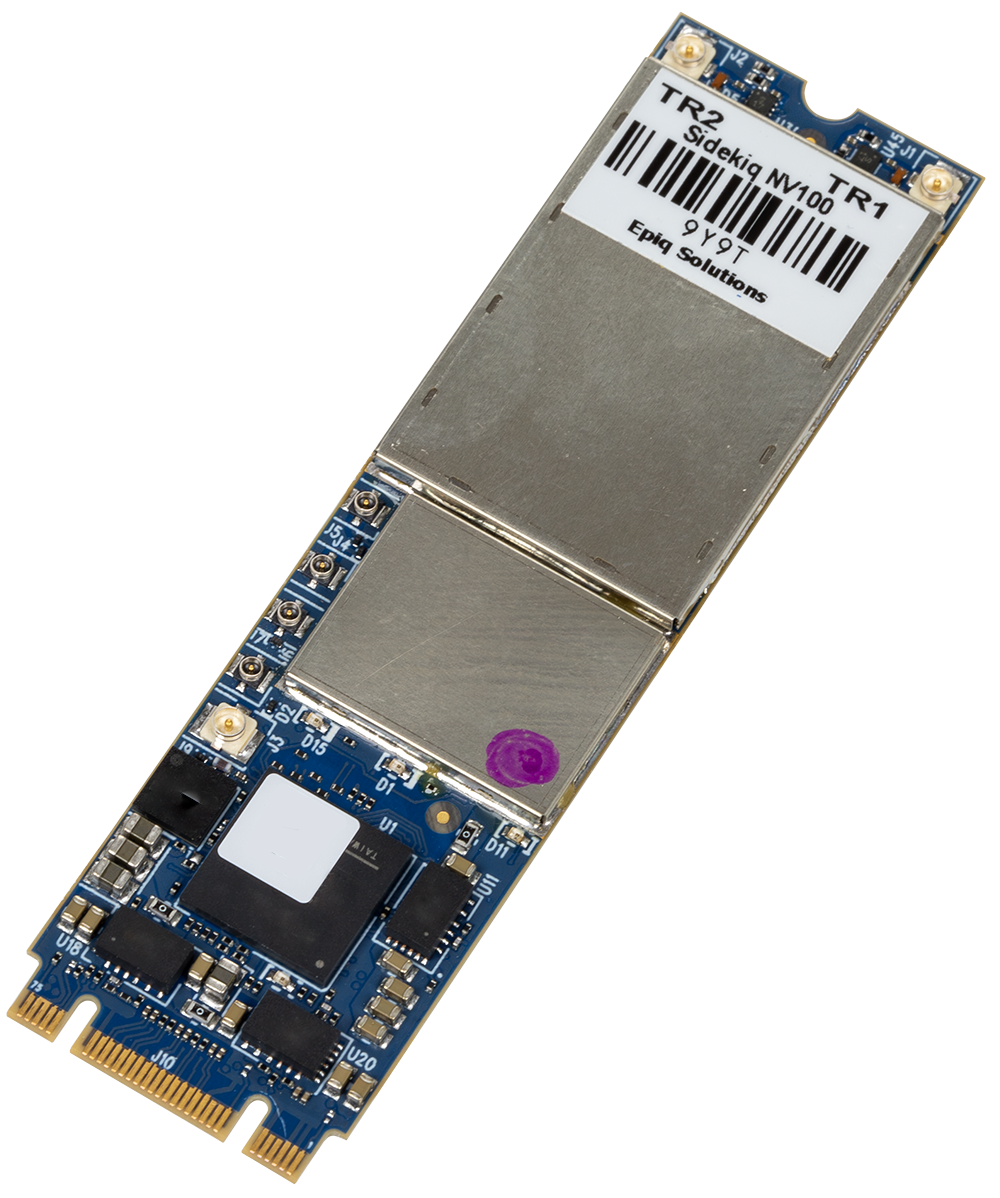

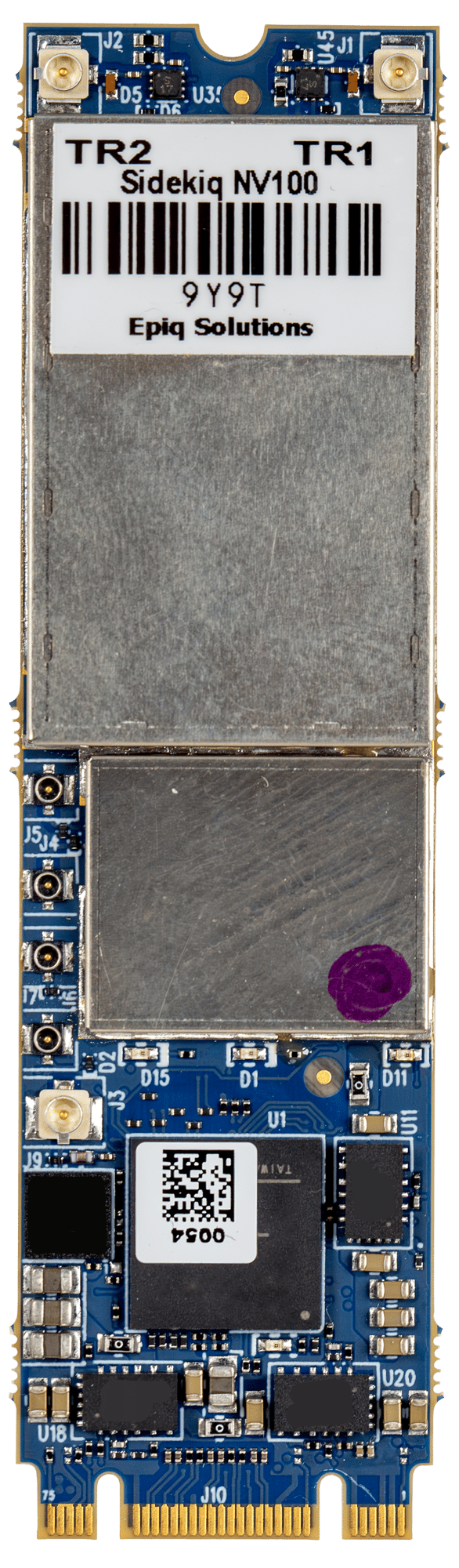

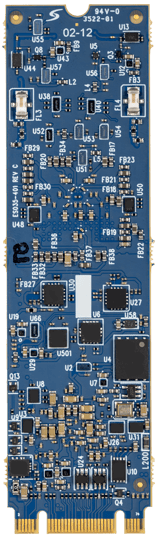

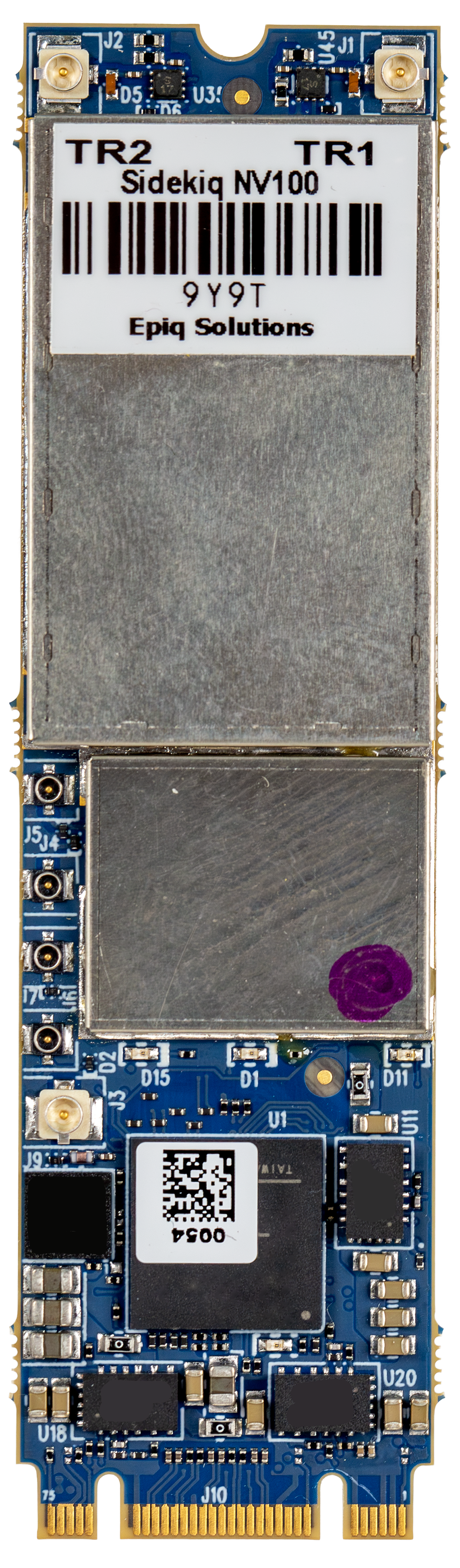

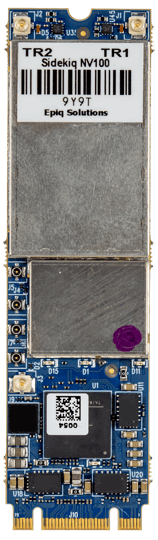

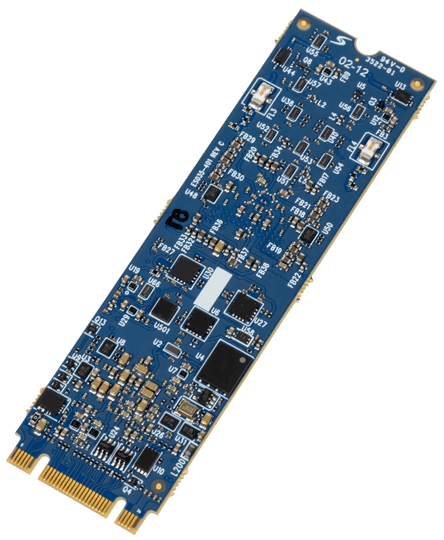

SIDEKIQ™ NV100

Sidekiq NV100 is a low-SWaP RF powerhouse combining state-of-the-art wideband RF processing capabilities with an integrated GPS clock and flexible Rx pre-select filtering, all in a common form factor.
background-ring-image mobile backgroung image

features

RF Tuning Range

30 MHz to 6 GHz
(RF access down to 10 MHz)

Integrated FPGA

Xilinx Artix 7 XC7A50T FPGA with
x2 Gen2 PCIe interface

RF Modes of Operation

2 Rx, 2 Tx, or 1 Tx + 1 Rx

RF Bandwidth

Up to 50 MHz per channel

Form Factor

M.2 2280 Key B + M
(22 mm x 80 mm x 4.5 mm)

Power Consumption

4-6W (typical usage)

Benefits

WIDE COMPATIBILITY

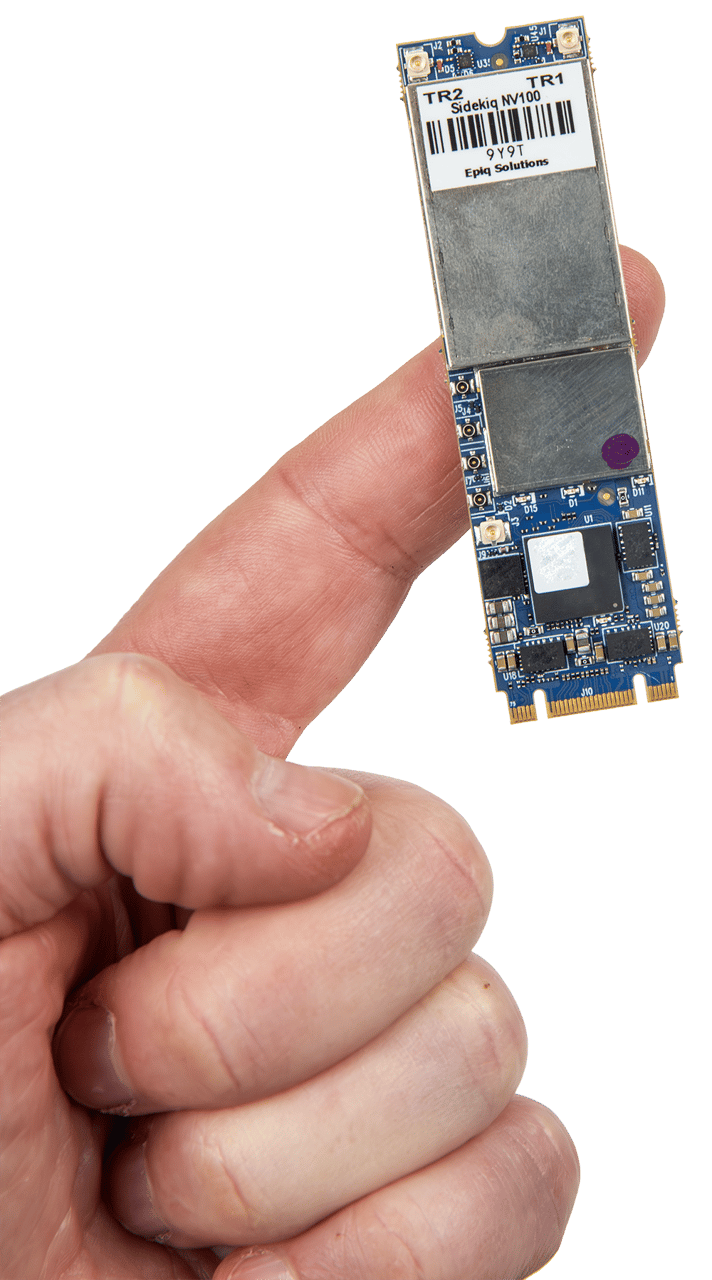

Because it uses the M.2 2280 form factor, commonly found on laptops and tablets, the Sidekiq™ NV100 is compatible with many computer systems.

EXCEPTIONAL TUNING, FIDELITY AND RANGE

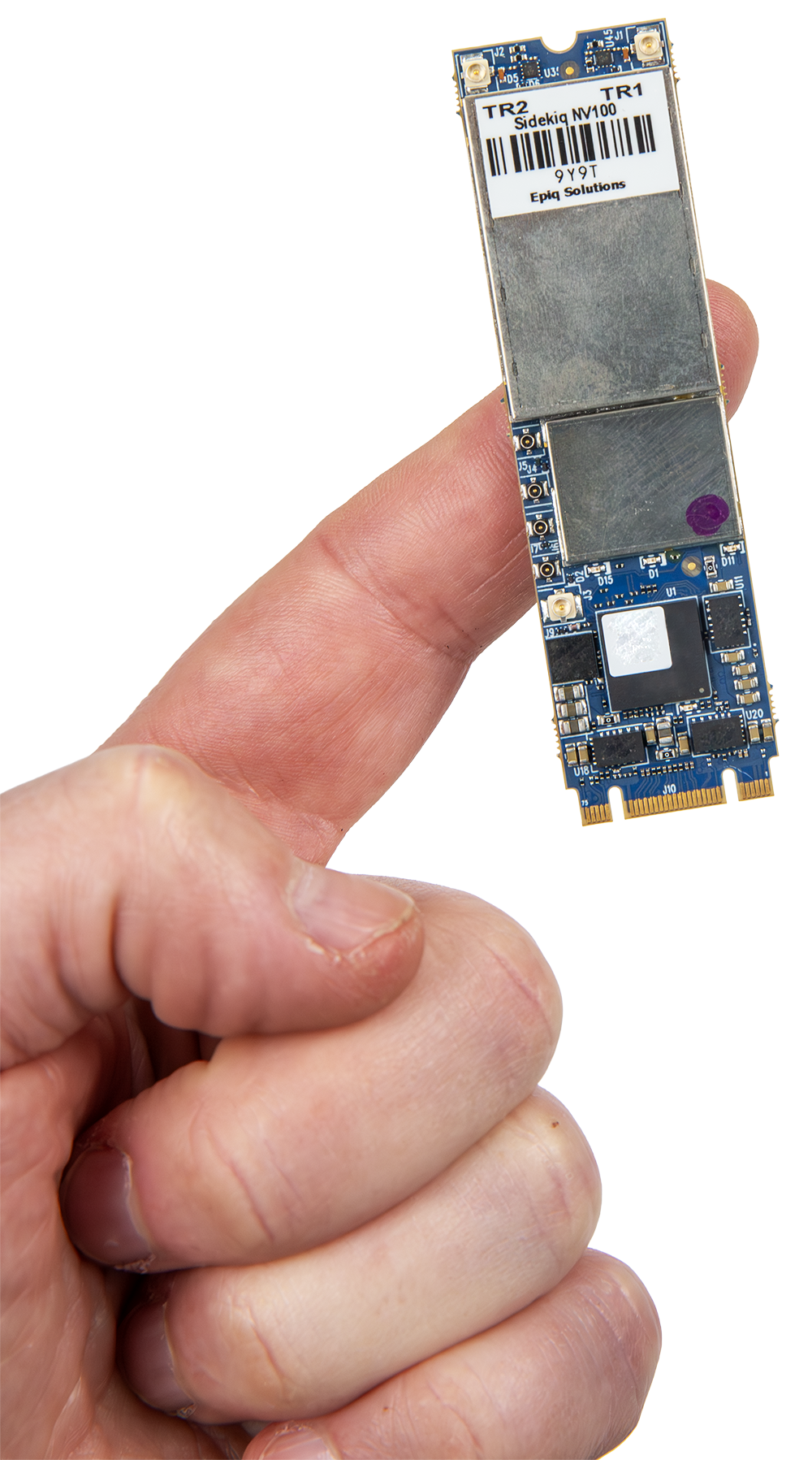

Packed in a tiny M.2 2280 form factor, the Sidekiq™ NV100 delivers extended RF tuning capabilities, exceptional RF fidelity and instantaneous dynamic range.

benefits

Integrated
GPS

The Sidekiq™ NV100 includes an integrated GPS receiver and GPS disciplined oscillator, giving you superior accuracy in long-term positioning.

KEY SPECS

Sidekiq™ NV100 specs at a glance

Tuning Range

30 MHz to 6 GHz (RF access down to 10 MHz)

Bandwidth

Up to 50 MHz per channel

Power Consumption

4-6 W (typical usage)

Integrated FPGA

Xilinx Artix 7 XC7A50T FPGA with x2 Gen2 PCIe interface

Form Factor

M.2 2280 Key B + M (22 mm x 80 mm x 4.5 mm)

I/O

PCIe Gen2 x2 (5 Gbps) + GPIO

Receivers

Up to 2

Transmitters

Up to 2

compared spec

Sidekiq™ NV100

Sidekiq™ M.2

RF Coverage
Bandwidth
Receivers
Transmitters
Integrated FPGA
Form Factor
I/O
Power Consumption
10 MHz to 6 GHz
Up to 50 MHz per channel
Up to 2
Up to 2
AMD Artix 7 XC7A50T FPGA
M.2 2280 Key B + M
(22 mm x 80 mm x 4.5 mm)
PCIe Gen2 x2 + GPIO + GPSDO
4-6 W (typical usage)
45 MHz to 6 GHz
Up to 50 MHz per channel
Up to 2
Up to 2
AMD Artix 7 XC7A50T FPGA
M.2 3042 Key B + M
(30 mm x 42 mm x 4 mm)
PCIe Gen2 x1 + USB 2.0
2.5W (typical usage)

compared specs

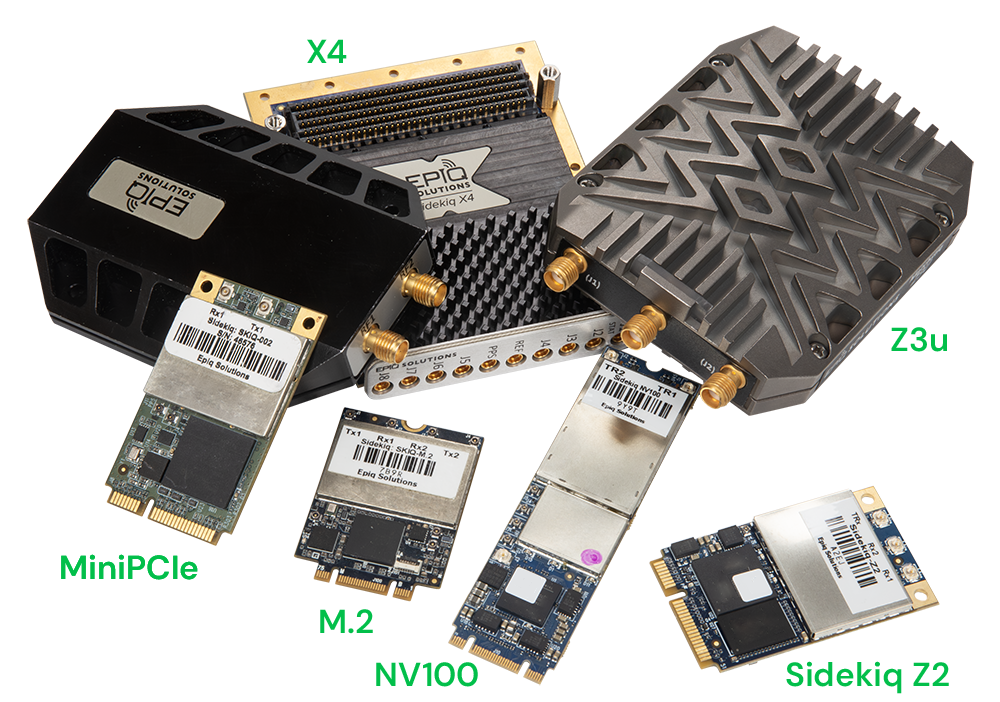

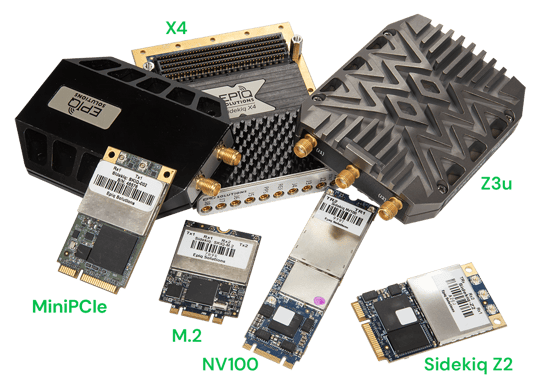

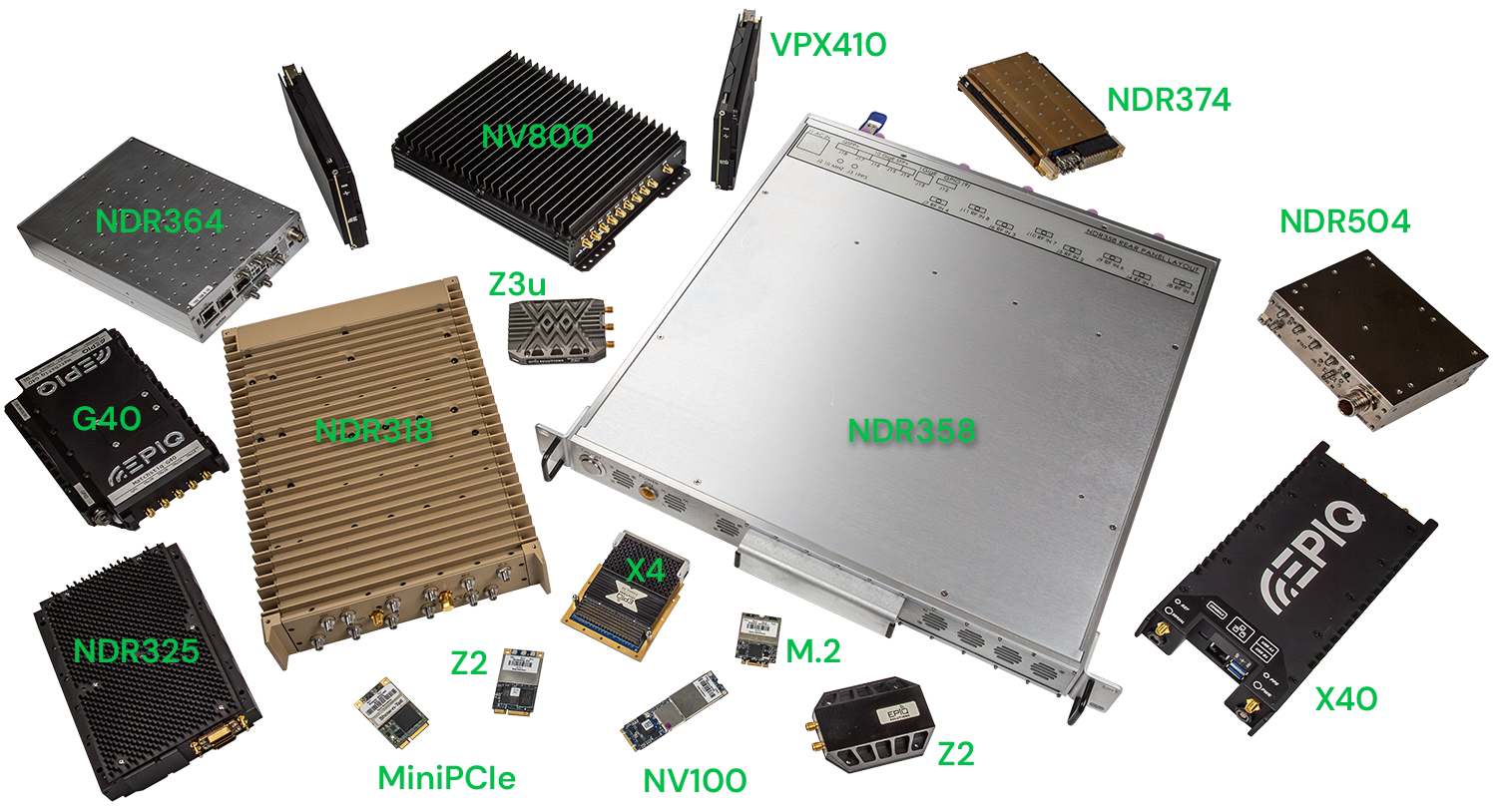

Find your Perfect Sidekiq™

slider product

Sidekiq™ NV100

TUNING RANGE

30 MHz to 6 GHz (RF access down to 10 MHz)

Bandwidth

Up to 50 MHz per channel

Power Consumption

4-6 W (typical usage)

INTEGRATED FPGA

Xilinx Artix 7 XC7A50T FPGA with x2 Gen2 PCIe interface

FORM FACTOR

M.2 2280 Key B + M (22 mm x 80 mm x 4.5 mm)

I/O

PCIe Gen2 x2 (5 Gbps) + GPIO

RECEIVERS

Up to 2

TRANSMITTERS

Up to 2

slider product

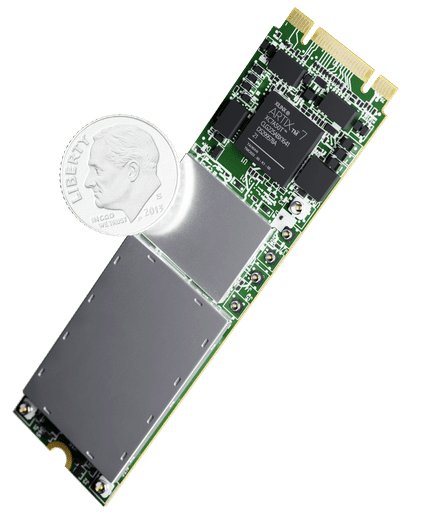

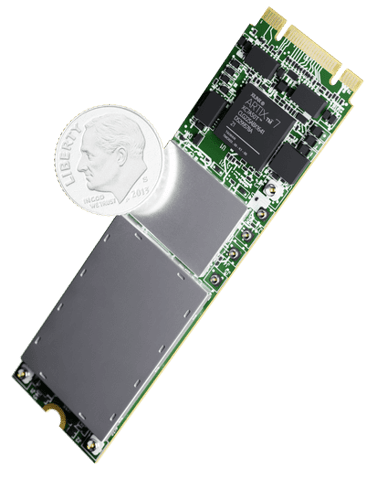

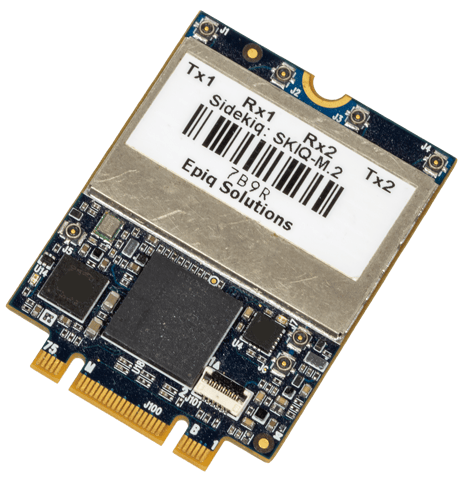

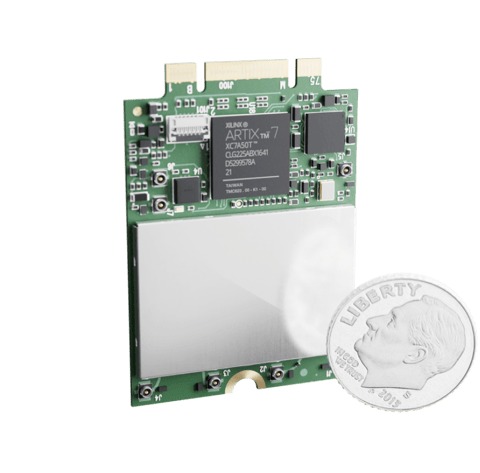

Sidekiq™ M.2

TUNING RANGE

70 MHz to 6 GHz

BANDWIDTH

Up to 50 MHz per channel

POWER CONSUMPTION

Under 2W (typical usage)

INTEGRATED FPGA

Xilinx Artix 7 XC7A50T FPGA with x1 Gen2 PCIe interface

FORM FACTOR

M.2 card, Module Key B+M, Socket 2 (30 mm x 42 mm x 4 mm)

I/O

PCIe Gen2 x1 (5 Gbps) + USB 2.0

RECEIVERS

Up to 2

TRANSMITTERS

Up to 2

APPLICATIONS

Perfect for a Range
of Applications

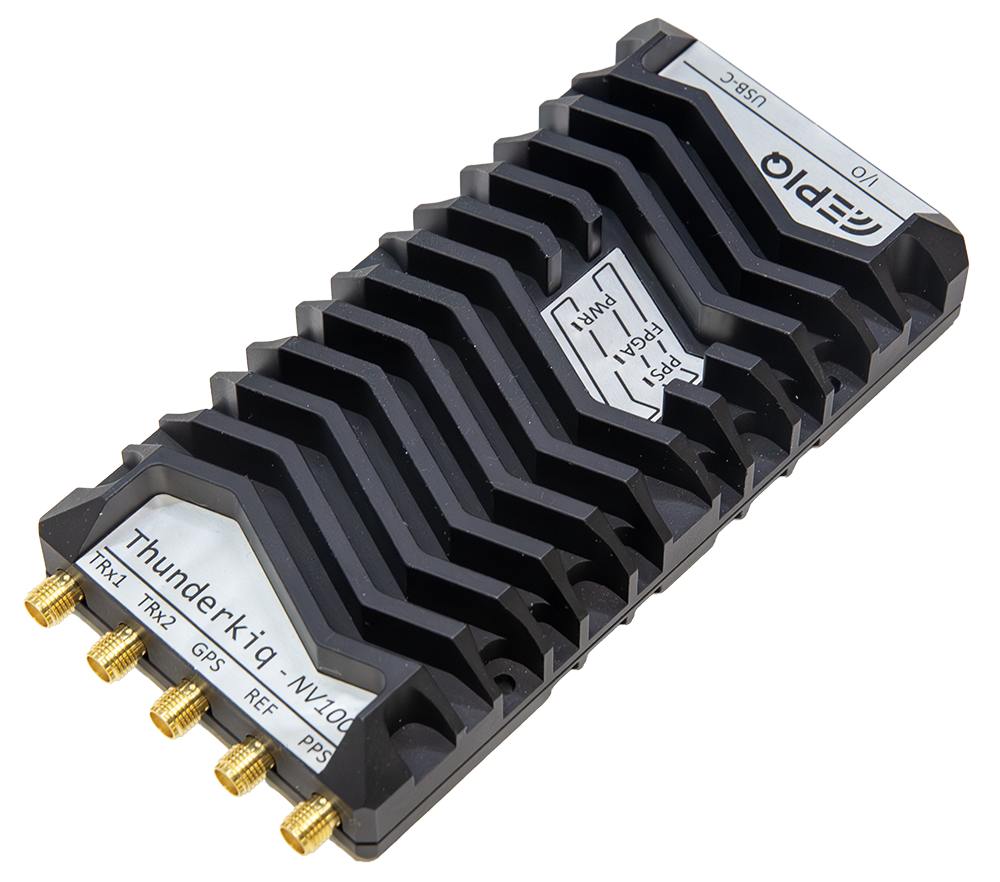

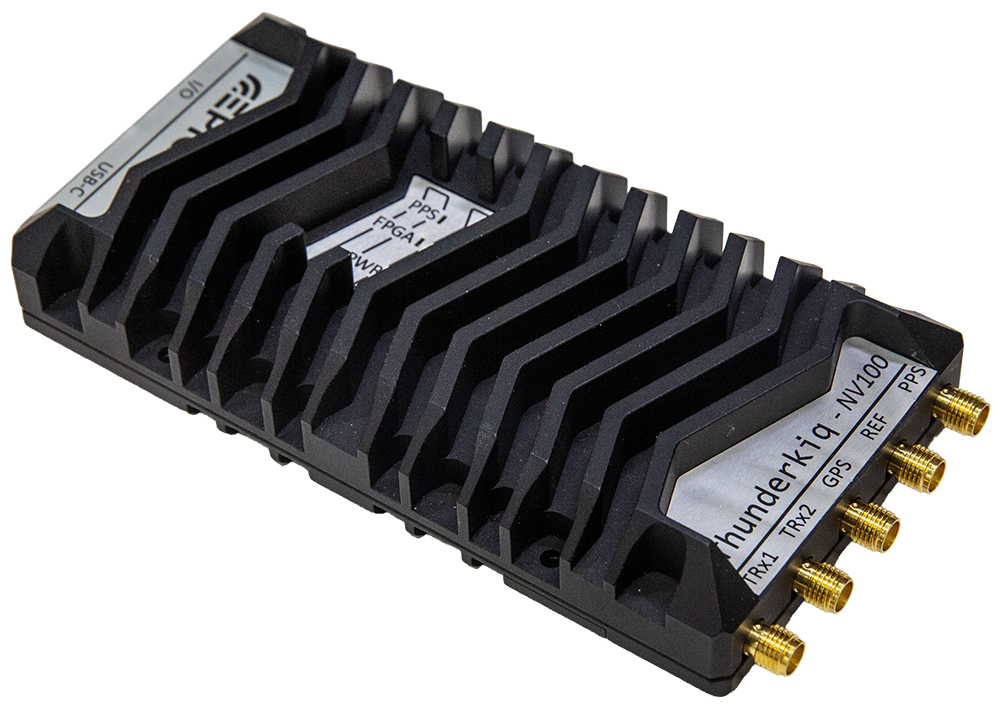

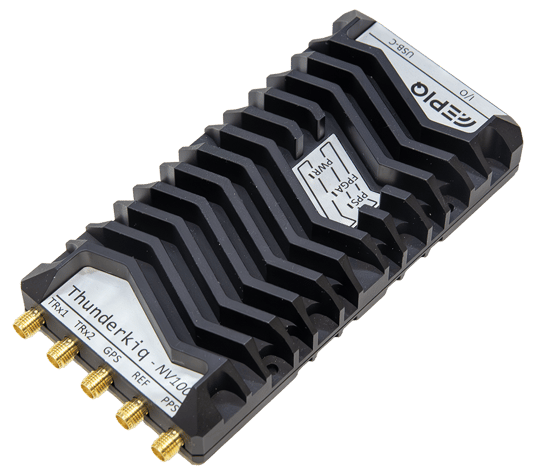

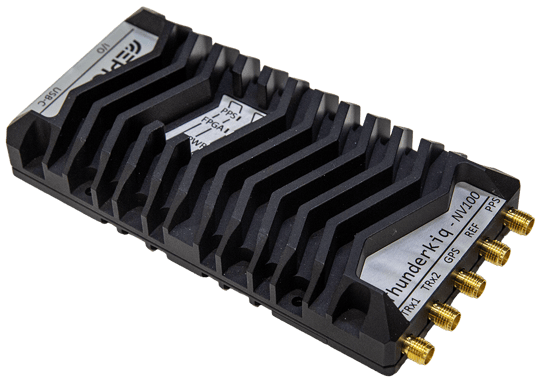

Thunderbolt™ 3 Compatible Peripheral
Get the Sidekiq™ NV100 in a Thunderbolt™ compatible carrier, with SMA ports for RF and a Thunderbolt™ 3 compatible USB-C connector.
Compact RF Platform
Need a complete, high-performance SDR solution in a small form factor? We offer Sidekiq™ NV100 pre-integrated into an Intel® NUC computer.
case study
Enabling Wireless Security with Flying Fox® Enterprise

Discover how Flying Fox® Enterprise, with Sidekiq™ modules at its core, redefines RF-based security. By detecting and mitigating unauthorized wireless transmissions within a facility, this state-of-the-art solution enhances protective measures and helps you address potential threats.

Building the Game-Changer in Rescue Operations

When CENTUM needed an SDR solution for their Lifeseeker search and rescue system that was compact yet powerful, we jumped at the chance. In the span of just one year, our Sidekiq™ M.2 card became a silent hero: helping CENTUM save over 100 lives yearly.

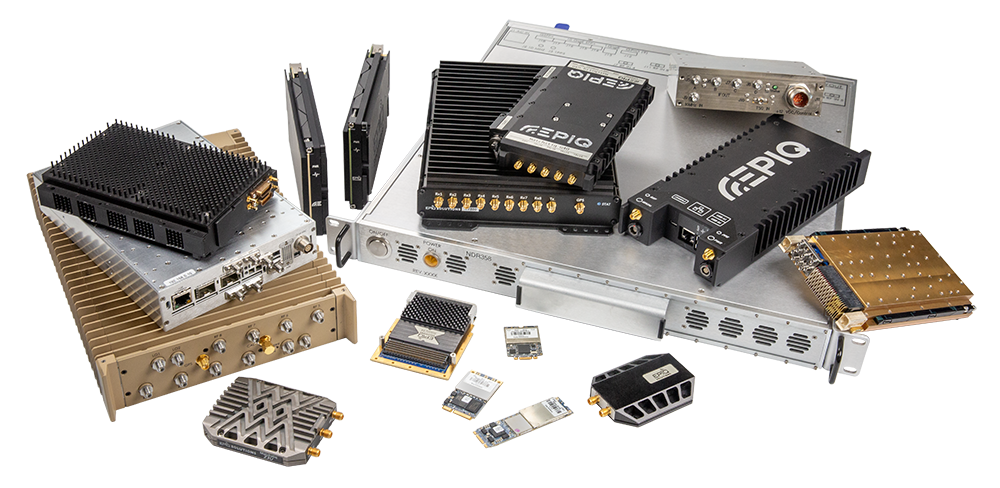

RELATED PRODUCTS

Looking for More?

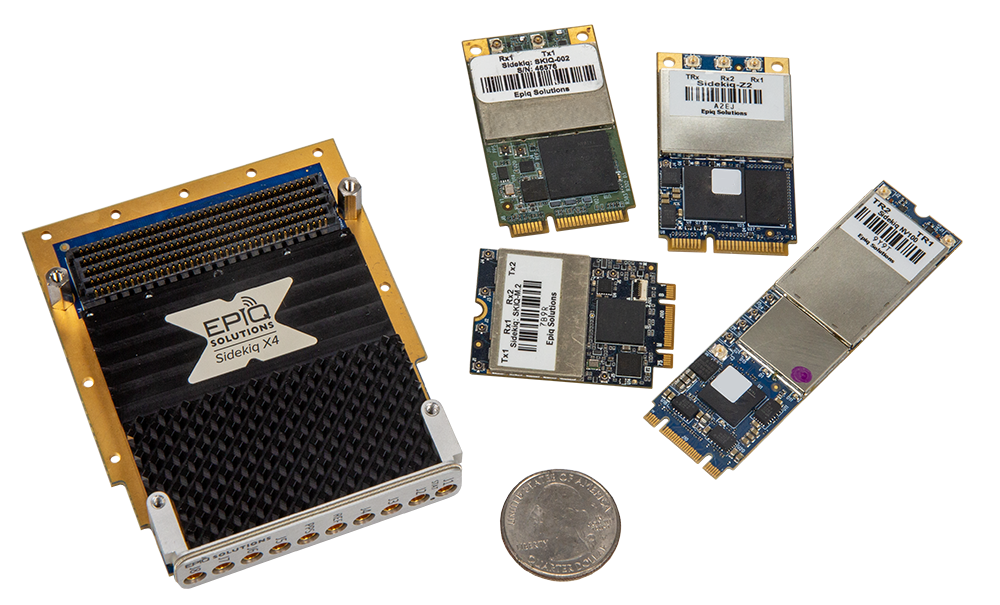

Customize Your Sidekiq™

We design every product to be flexible and adaptable. Ready to explore more of our technology?

RESOURCES

Get Started with Sidekiq™ NV100

faq

Frequently Asked Questions

What is a Software-Defined Radio (SDR)?

SDR is a radio communication system in which components traditionally implemented in hardware are instead implemented (via custom software) on a personal device or embedded computer system. SDR systems can be adapted to integrate with various communication applications. Once integrated, SDRs can be used to scan for radio frequencies, listen to FM radio, track aircraft with ADS-B, receive GPS signals, dabble in amateur radio, decode digital voice, and even bounce signals off the moon!

Learn More
How do Epiq's SDR products differ from others on the market?

Epiq's SDR solutions deliver unparalleled RF performance and flexibility in compact form factors, making them perfect for a range of applications: including mobile, portable, and space-constrained. With a wide tuning range from 70 MHz up to 6 GHz, our products can be used for things like spectrum analysis, RF recording, cellular network scanning, enforcing no-wireless policies, and more.

Learn More
Can I customize my SDR setup?

Yes, our SDRs, SDR platforms, and turnkey solutions are designed to be flexible and easily integrated. That means you can customize any of our products to fit your specific needs.

To get started, request one of our dev kits. We have two options: Evaluation (EVK) and Platform Development (PDK). You can request a dev kit by filling out the form below. Once you do, we'll get back to you with details and next steps.

If you need assistance, Epiq’s team is always here to offer comprehensive support: including detailed product documentation and an active community for peer discussions.

Learn More
What are the data transfer options for your SDRs?

Our SDRs support various data transfer interfaces, including USB 2.0, USB 3.0, and PCI Express (PCIe), depending on the product.

Learn More
Which programming languages or frameworks do your products support?

Our SDRs support popular frameworks such as GNU Radio, and others. For programming, we support languages such as C, C++, and Python.

Learn More
Do your products support phase-coherent MIMO operations?

Yes, our SDR products, such as the Sidekiq™ X4, support multi-channel phase-coherent MIMO operations, making them suitable for a variety of applications.

Learn More
Can your SDRs operate standalone or do they require a host device?

Many of our SDRs can operate both standalone and as part of a host device, giving you the flexibility to use them as needed.
