MATCHSTIQ™
Z SERIES

The Matchstiq™ Z Series delivers an RF transceiver plus signal processing solution in the smallest possible form factor. Complete and field-ready, this software-defined radio (SDR) platform is ideal for on-the-go signal processing applications.
background-ring-image mobile backgroung image

features Z2

RF

1Rx with four band Rx pre-select filter bank + 1Tx

Clock

40 MHz TCVCXO ref clock with
+/- 1 PPM stability

FPGA

Xilinx® Zynq® SoC 7010

I/O

USB 2.0 OTG interface

CPU

Dual-core ARM Cortex A9 CPU running Linux

Storage

128 MB

features z3u

RF

Supports 2-channel phase coherent Rx or 1Tx + 1Rx with integrated pre-select filters

GPS/Clock

GPS disciplined oscillator / 10 MHz + PPS inputs

FPGA

Xilinx® Zynq® Ultrascale+ ZU3EG SoC

I/O

USB 3.0 OTG interface

CPU

Quad-core ARM running Ubuntu 22.04 Linux

Storage

128 GB eMMC + microSD card slot

benefits

SDR On the Go

Less than 4” x 2” x 1” and under 6 ounces, the Matchstiq Z Series is ideal for on-the-go signal processing applications. An integrated magnetic mount allows the platform to attach to a cell phone or other portable device, deriving power and communications through a single USB-C port. As a stand-alone platform, Matchstiq Z Series can execute signal processing applications locally or interface to a host platform over USB.

FEATURE-PACKED, FULLY INTEGRATED, HANDHELD SDR

Designed with a focus on flexibility, the Matchstiq™ Z Series lets you adjust frequency, bandwidth, and gain to meet diverse mission needs. It's field-ready, easy to use, and high-performing. This SDR is all you need to take complex applications out of the lab and put them into the hands of users.

SDR ON THE GO

Less than 4” x 2” x 1” and under 6 ounces, the Matchstiq Z Series is ideal for on-the-go signal processing applications. An integrated magnetic mount allows the platform to attach to a cell phone or other portable device, deriving power and communications through a single USB-C port. As a stand-alone platform, Matchstiq Z Series can execute signal processing applications locally or interface to a host platform over USB.

next-button

benefits

Easy and High-
Performing

An intuitive user interface makes SDR not only accessible, but simple, while  high-performance GPS/GLONASS capabilities make for reliably accurate geolocation and time-stamping.

compared spec

Find Your Perfect Matchstiq™

Matchstiq™ Z2

Matchstiq™ Z3u

rf tuning range
Channel Bandwidth
Power Consumption
Integrated FPGA
Size
I/O
Receivers
Transmitters
70 MHz to 6 GHz
200 KHz up to 56 MHz
~2.5 W (typical)
Xilinx® Zynq® 7010 SoC
3.44” x 2.44” x 0.56”
USB 2.0 OTG interface
1
1
70 MHz to 6 GHz
200 KHz up to 56 MHz
Under 6 W (typical)
Xilinx® Zynq® Ultrascale+ ZU3EG SoC
2.64" x 3.63" x 0.81"
USB 3.0 OTG interface
2
1
COMPARE ALL SDRs

compared spec

Find Your Perfect Matchstiq™

COMPARE ALL SDRs
slider product

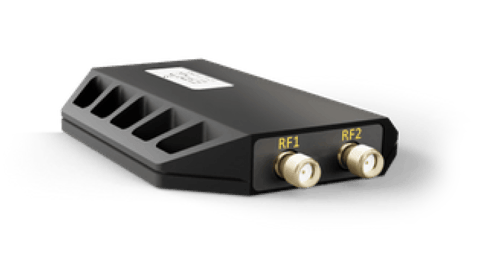

Matchstiq™ Z2

TUNING RANGE

70 MHz to 6 GHz

Channel Bandwidth

/

Power Consumption

~2.5 W (typical)

INTEGRATED FPGA

Xilinx® Zynq® SoC 7010

SIZE

3.44” x 2.44” x 0.56”

I/O

USB 2.0 OTG interface

RECEIVERS

1

TRANSMITTERS

1

slider product

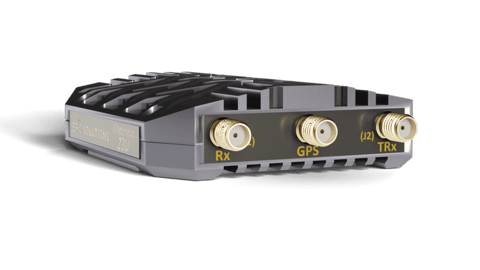

Matchstiq™ Z3u

TUNING RANGE

70 MHz to 6 GHz

Channel BANDWIDTH

200 KHz up to 56 MHz

POWER CONSUMPTION

Under under 6 W (typical)

INTEGRATED FPGA

Xilinx® Zynq® Ultrascale+ ZU3EG SoC

SIZE

2.64" x 3.63" x 0.81"

I/O

USB 3.0 OTG interface

RECEIVERS

1

TRANSMITTERS

1

APPLICATIONS

Matchstiq™ is Ideal for a
Variety of Applications

Visualize and Record rF
Transform any platform with a Sidekiq™ radio card into a powerful RF analyzer and, in some cases, an RF recorder with ERA™.
Ditch the Bulky SpecAn, Visualize RF on your Tablet
Our multi-technology cellular scanner runs on virtually any of our SDR platforms— delivering the ultimate flexibility in small form factors. Use Skylight™ for comprehensive and flexible analyses of your networks.

other products

Looking for More?

Explore Other RF Transceiver Platforms

Dive into Epiq's array of RF transceiver platforms, each designed for a unique aspect of RF spectrum awareness.

Customize Your Matchstiq

We design every product to be flexible and adaptable. Ready to explore more of our technology?

faq

Frequently Asked Questions

What is a Software-Defined Radio (SDR)?

SDR is a radio communication system in which components traditionally implemented in hardware are instead implemented (via custom software) on a personal device or embedded computer system. SDR systems can be adapted to integrate with various communication applications. Once integrated, SDRs can be used to scan for radio frequencies, listen to FM radio, track aircraft with ADS-B, receive GPS signals, dabble in amateur radio, decode digital voice, and even bounce signals off the moon!

Learn More
How do Epiq's SDR products differ from others on the market?

Epiq's SDR solutions deliver unparalleled RF performance and flexibility in compact form factors, making them perfect for a range of applications: including mobile, portable, and space-constrained. With a wide tuning range from 70 MHz up to 6 GHz, our products can be used for things like spectrum analysis, RF recording, cellular network scanning, enforcing no-wireless policies, and more.

Learn More
Can I customize my SDR setup?

Yes, our SDRs, SDR platforms, and turnkey solutions are designed to be flexible and easily integrated. That means you can customize any of our products to fit your specific needs.

To get started, request one of our dev kits. We have two options: Evaluation (EVK) and Platform Development (PDK). You can request a dev kit by filling out the form below. Once you do, we'll get back to you with details and next steps.

If you need assistance, Epiq’s team is always here to offer comprehensive support: including detailed product documentation and an active community for peer discussions.

Learn More
What are the data transfer options for your SDRs?

Our SDRs support various data transfer interfaces, including USB 2.0, USB 3.0, and PCI Express (PCIe), depending on the product.

Learn More
Which programming languages or frameworks do your products support?

Our SDRs support popular frameworks such as GNU Radio, and others. For programming, we support languages such as C, C++, and Python.

Learn More
Do your products support phase-coherent MIMO operations?

Yes, our SDR products, such as the Sidekiq™ X4, support multi-channel phase-coherent MIMO operations, making them suitable for a variety of applications.

Learn More
Can your SDRs operate standalone or do they require a host device?

Many of our SDRs can operate both standalone and as part of a host device, giving you the flexibility to use them as needed.
